Water cooled temperature sensors
15 July 2014

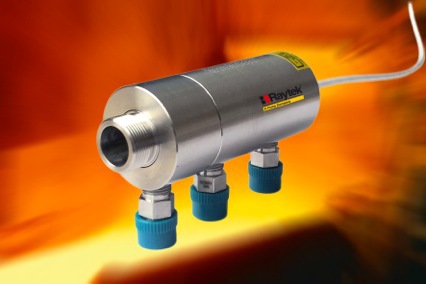

The new water-cooled stainless steel housing on MI3100 pyrometers from Raytek extends the ambient temperature tolerance to 180°C. Delivery includes an air purge collar.

With a diameter of 35mm and length of 73mm, the housing can be easily integrated even in applications where space is limited. Two spectral models each cover a wide temperature range of 500-1800°C (1 µm) and 250-1400°C (1.6 µm). An integrated laser sighting facilitates positioning and aiming.
Modbus, Profibus, Ethernet, and Profinet communication boxes are available for connection to the control level, as well as a model with four galvanically isolated analogue outputs.
