3-in-1 combination

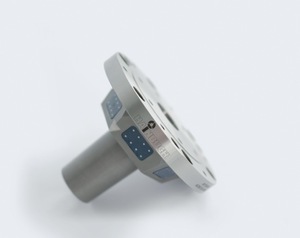

The basic clamping device remains mounted on the machine and serves at the same time as an interface for other clamping devices. Whether ID or OD clamping, saw cuts or bar work, the pull-back effect of the mounted add-on clamping elements enables solid clamping with optimum characteristics, such as high rigidity, vibration reduction and maximum metal removal rates.

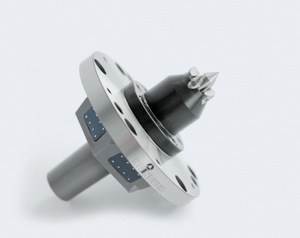

To make the modular system usable for smaller quantities and material dimensions  to a diameter of 200mm, the jaw module was launched. Mandrels and clamping heads can also be used in the basic unit. Hainbuch believes the modular system to be a perfect 3-in-1combination – ID clamping, OD clamping and jaw clamping.
