Highest-density connector module

18 February 2015

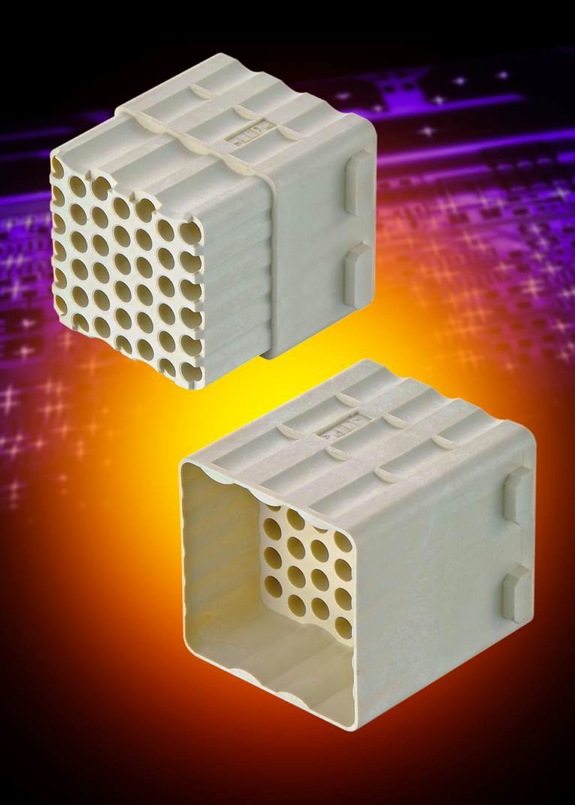

The Han DD(R) Quad module is the highest-density module available in Harting's Han-Modular(R) industrial connector family.


The new module has space for 42 Han D(R) contacts with crimp termination, allowing users to place around 25% more contacts in the same space. As a result, complete connector configurations can be realised in a smaller volume and more cost effectively.

The module is primarily designed as a signal interface, and features 10A and 150V electrical design characteristics. Since the UL working voltage can reach 250V, the module may also be used in power supplies for industrial applications in conjunction with Harting's Han(R) IP 65 connectors.

Use of high-quality LCP plastic is said to give the module excellent fire protection properties and makes it a space-saving solution for applications in the transport sector.

With the Harting Han-Modular(R) series, users can assemble their own customised connector configurations to meet their application requirements. The Han-Modular(R) series is continually being expanded, and there are currently over 40 modules for electrical, optical and gaseous signals for a multitude of applications.
