Protects against water ingress
02 July 2015

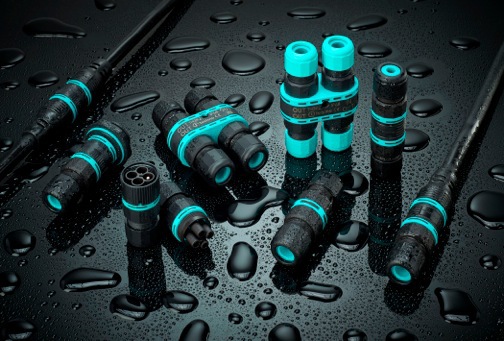

Hylec-APL, a specialist supplier of electrical and electronic components, enclosures and rack systems, has added the Techno TH392 waterproof connector with X-Dry technology.
Hylec-APL says all cables are hydroscopic to some degree and will therefore absorb moisture that can collect inside the cable sheath, moving along its length and even crossing terminations in the cable. The X-Dry technology blocks moisture transmission across terminals, protecting electrical and electronic equipment.
"The special barrier prevents moisture condensation, which runs through the cable, from entering the connector, protecting the system in critical conditions of use,” said Mark Severn, director of sales for Hylec-APL.
The connectors have screw or piercing terminals and can accept cables with diameters from 8 to 12mm; maximum cable cross section is 4mm2 for screw terminals and 0.5 to 1.5mm2 for the piercing clip terminals. Water and dust protection is to IP68 at 3bar pressure from 30min to 2h. Rated current is 17.5A, 450V, and operating temperature from -40 to +125°C.
The contact screw terminals are brass nickel plated. The standard screws are steel zinc plated and the piercing screws are plated with steel zinc brass. There are three- and four-way versions. The four-way version takes up 400 by 160 by 205mm.
The mini connector is suitable for operation in tight spaces. The piercing clip wiring system can be installed quickly and safely. Accessories include grommets, reducers, lock nuts and a special tool that ensures the correct installation of the product to provide maximum protection.
