LED UV curing system
27 August 2015

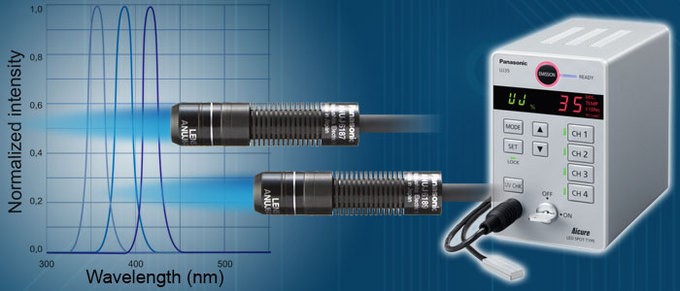

The Panasonic LED UV curing system UJ30/35 is designed for hardening UV-reactive adhesives, sealing compounds, and ink curing.

The compact system is said to have lower energy consumption than lamp systems and to have advanced features. Moreover, Panasonic says LED technology reduces the thermal impact on components and temperature feedback control assures stable intensity without any fan cooling.
The controller can be equipped with up to four individually controlled LED heads. In addition to the UV-LED heads with a wavelength of 365 and 385nm, Panasonic now offers heads with 405nm. All heads can be equipped with lenses to adjust the power concentration on the desired area.
With a head size of just 50mm length and a diameter of 12mm, the new 405nm heads work with an irradiation intensity of up to 20900mW/cm².
