Measure to manage

In addition to allowing users to save energy costs, due to improved connection technology it is possible to save significant commissioning time. In addition, the new push-in connectors require less wiring time and  offer space savings.

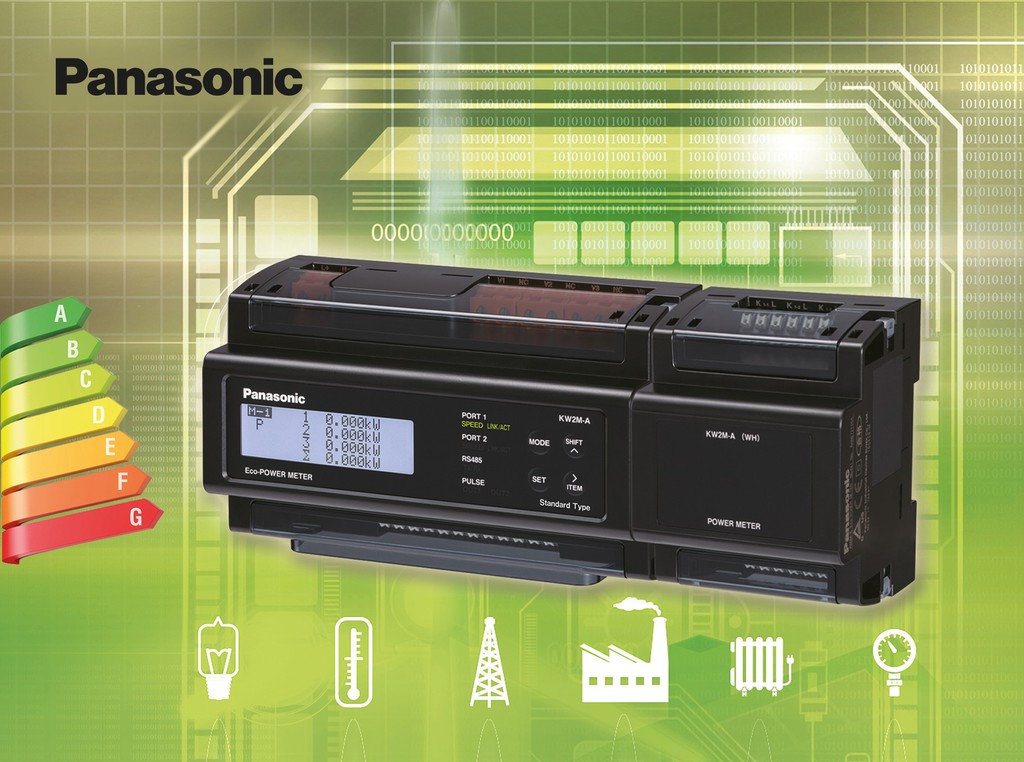

The KW2M main controller and expansion units can each measure two channels per unit, allowing up to eight circuits to be connected if the maximum three expansion units are used. Measurements are taken with an accuracy of 0.2% for current and voltage and 0.5% for electric power.

The integrated hub and twin Ethernet ports simplify the connection of multiple KW2M Eco-POWER METERs on site and are used to complement the integrated Web server functionality. This allows real-time monitoring of various parameters and the display of information via user-defined pages created using the Web creator tool.

Additional functionality is provided with individual inputs and outputs that can be configured to count external device and provide outputs to inform of various alarms for events.
