Snapshot sensor for robot-mounted 3D inspection

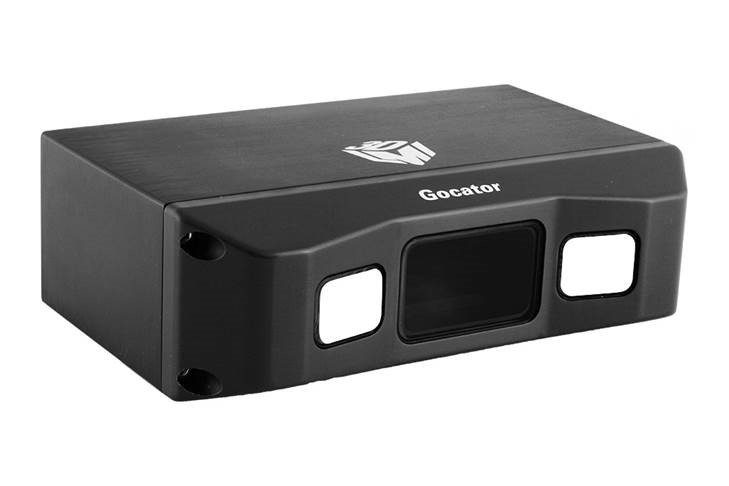

The Gocator 3109 measures just 49 x 100 x 155mm and weighs less than 1.5kg and is believed to have the smallest footprint of any blue LED projection scanner on the market. The Gocator 3109 is easy to mount onto robotic arms, or fit single or multiple sensors into confined spaces (e.g. for measuring engine cylinders), and integrate or embed into machines and other factory devices.

It uses a blue LED structured light module and stereo scanning technology to generate high-resolution, full-field scans with fast scan cycles at up to 5Hz. The blue LED produces high-contrast patterns that deliver high-resolution scanning with excellent ambient light immunity, even in challenging conditions.

The wide Field Of View (86 x 67mm to 88 x 93mm) and flexible scanning capability provide measurement of multiple features such as fasteners, holes, slots, studs, and panel gap and flush with a single 3D snapshot. This lowers system costs, because users are able to inspect a large number of features in a shorter period of time and with a minimum number of scanners. Area scanning also removes the need to perfectly align the sensors before part features can be accurately detected.

The Gocator 3109 communicates directly with PLCs/robots, resulting in fewer hardware components and fewer configuration details for setup and maintenance. By eliminating the need for PCs and minimising the number of components required, system design is optimised and integration costs reduced. The sensor is factory pre-calibrated for ‘out-of-the-box’ use.
