Modular geared motors

Developed in cooperation with the company’s subsidiary – gear technology specialist Watt Drive – the WG20 comes in standardised mounting dimensions to suit both new and existing drive systems, ensuring ease-of-installation and flexibility when retrofitting. It is designed to cover virtually all international supply voltages thanks to internal voltage switching, which makes it easily interchangeable.

Available in energy efficiency classes IE2 and IE3, the motors feature an advanced design, with the pinion directly mounted on to the motor shaft resulting in a two-stage gear unit. WEG says fewer stages means reduced friction, which translates into lower power and heat dissipation and thus more efficiency. Additionally, the improved gear geometry featuring optimised gear teeth and high quality ground gear parts ensure low-loss power transfer and low noise levels, along with reliable performance and extended service life.

Norbert Reisner, head of geared motor technology at Watt Drive, explains: “The WG20 – the first WEG-branded geared motor product line – brings together Watt Drive’s high R&D and manufacturing competence and WEG’s motor expertise, which is supported by a global sales and service network. By adopting smart design and optimised production processes, we have developed a top-quality geared motor range which fulfils all requirements of modern drive systems across a wide range of industrial applications around the world.”

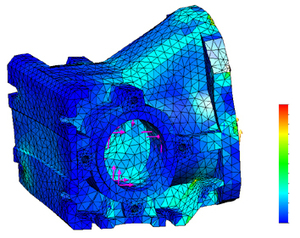

The compact gear unit design also has a positive impact on the required lubricant volume. The gear arrangement and the advanced housing interior allow the gear units to operate with a low oil level. The optimised oil fill level and low friction losses in turn prolong the life of the seals and extend the oil change intervals, therefore minimising time and costs associated with maintenance.

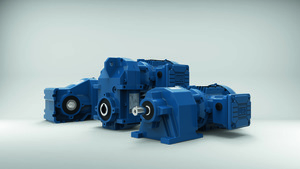

The WG20 is built with helical, parallel-shaft and helical bevel gear units with pressure-cast aluminium housings and is suitable for most industrial applications requiring torque ratings between 50 and 600Nm. International certifications further enhance the geared motor unit’s versatility, enabling users to operate it at 100 or 120Hz with variable speed drives.
