Polishing range enhanced

The Peitzmeier range has a modular configuration that will enable customers to add automation systems and even extend the dimensions of the machine to suit requirements. The OMNI-Grind product portfolio includes standard machines up to process oriented solutions, with two modular machine types available.

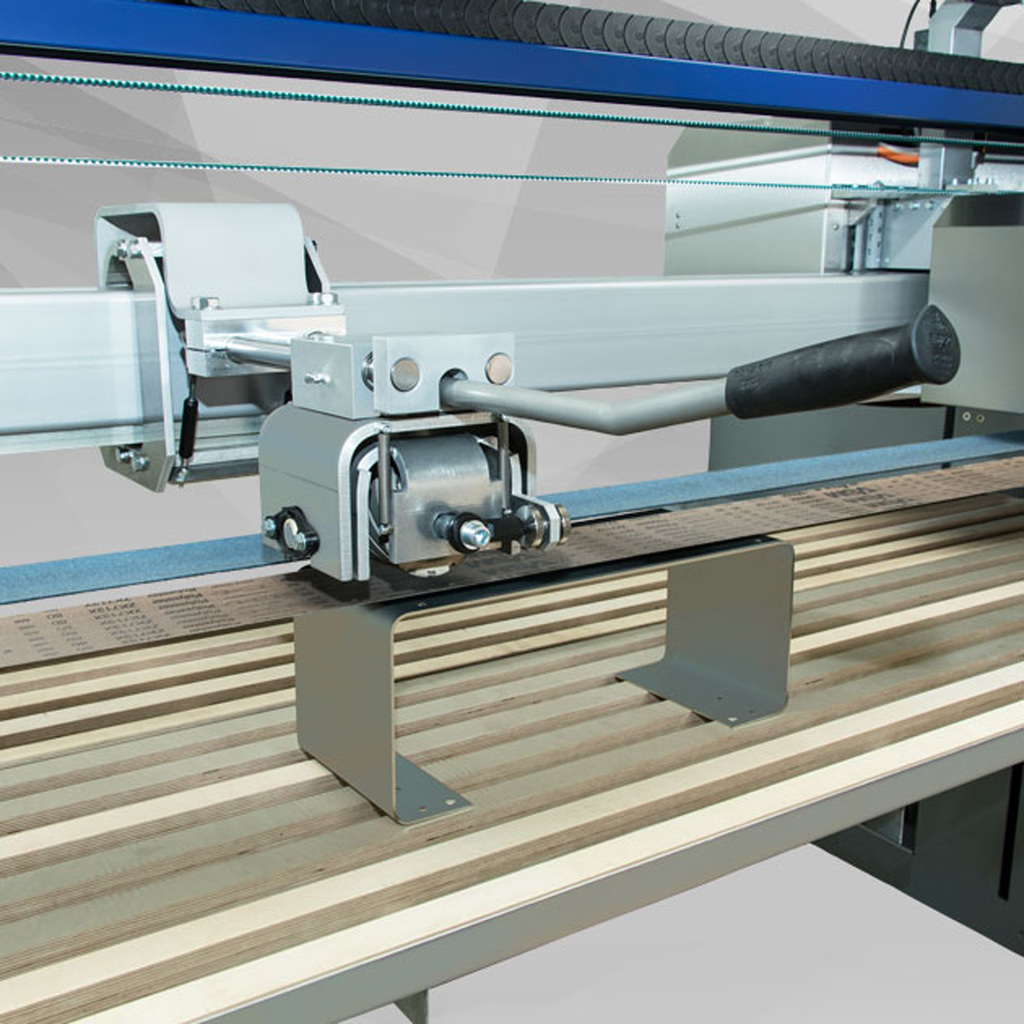

The OMNI-Grind Twin is a twin-belt grinding machine for flexible and efficient processing of small to medium sized parts. It is available with a table width of 2, 3, 4 or 5m that has the option of a 1 or 2m table width. This table can be height adjusted from 0.7 to 1.2m. There are modules for grinding, polishing, deburring and for bevelling parts. The automation of this machine is also configurable and varies from a manual table drive and programmable tools to automatic part processing. Control and all modules can be configured and retro-fitted at any time.

The OMNI-Grind Twin offers maximum working space for the operator with its trapezoid belt guiding system and with no transmission below the table, access is enhanced whilst the cantilever design of the grinding device permits the machining of parts longer than the table width. The grinding device is driven with a powerful 5.5kW motor that is mounted upon an extremely robust machine frame that weighs in a 3t.

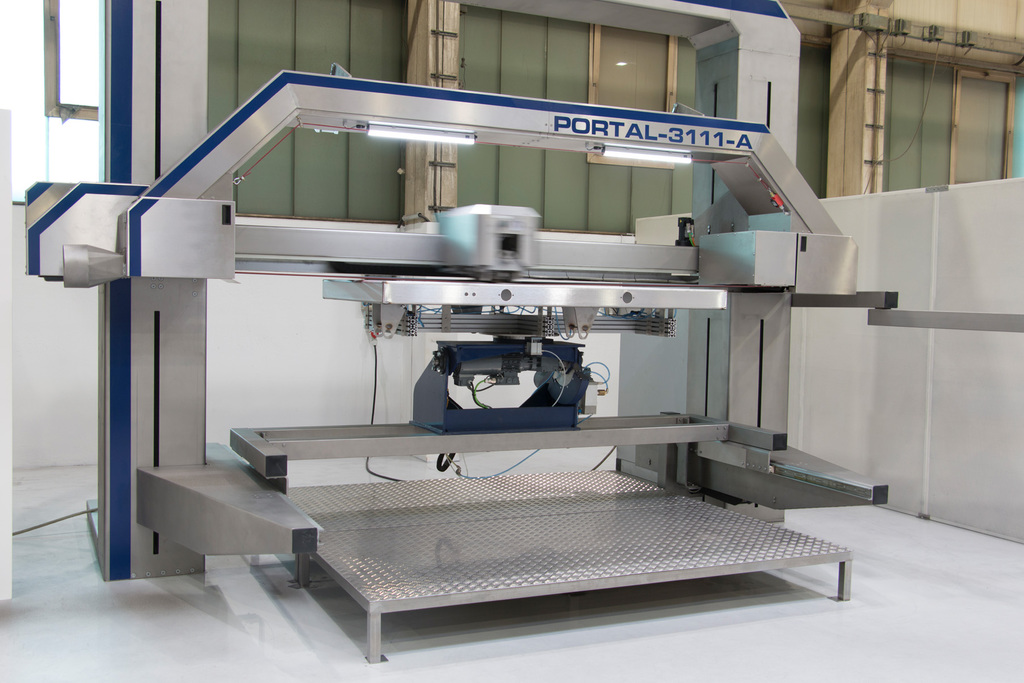

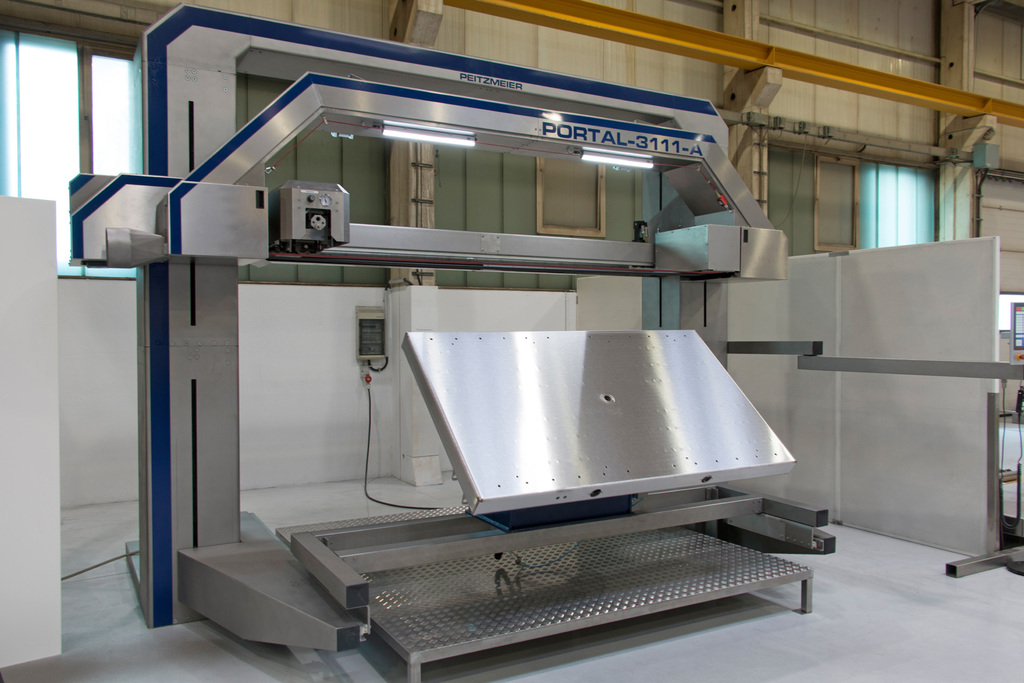

Complementing the Twin machine is the OMNI-Grind Portal. Like the Twin machine, the Portal range is offered with a 2 to 5m table length with a width of 1 or 2m. However, the key difference is the ability of the Portal Series to accommodate larger parts. This is possible through the height adjustment system that allows the Portal range to adjust from 1.5 to 2.5m. Parts can be handled via a table, swivelling device of a scissor-lift table.

Ellesco MD, Guy Newton confirms: "Compared to our previous supplier, the Peitzmeier range is significantly more attractive from a price-point perspective. Furthermore, the Peitzmeier machines are completely autonomous with the needs of the end user. If a customer wants a standard machine today with a view to possibly re-configuring the machine in the future, it is a feasible option that we couldn't previously accommodate. The level and ease of retro-fitting is also attractive for customers. With minimal effort, the Peitzmeier machines can have their dimensional capacity re-configured or automation solutions added. This modular design will prove attractive to end users as it 'future-proofs' their investment with the potential to alter the machine according to the changing demands of the business."
