Mid-range RFID reader offers tailored solutions

With its software virtualisation concept derived from HARTING’s MICA open modular industrial computing platform, the new reader allows specific project and customer software to be installed alongside standard HARTING software. The modular software means that the reader can support a range of communication protocols, and the architecture also makes it possible to create and support customer-specific variants.

Supported communications protocols include LLRP, OPC-UA and MQTT (MQ Telemetry Transport). Support for these and customer-specific variants is enabled by a software container concept based on embedded virtual computing. A LINUX base system contains the actual function containers, which can be easily replaced if necessary.

Additional functions such as project-specific direction recognition algorithms and individual decisions based on additional information from sensors or transponders can be added later in an extra software container. This does not limit the system integrator to specific programming languages: anything supported by LINUX can be used.

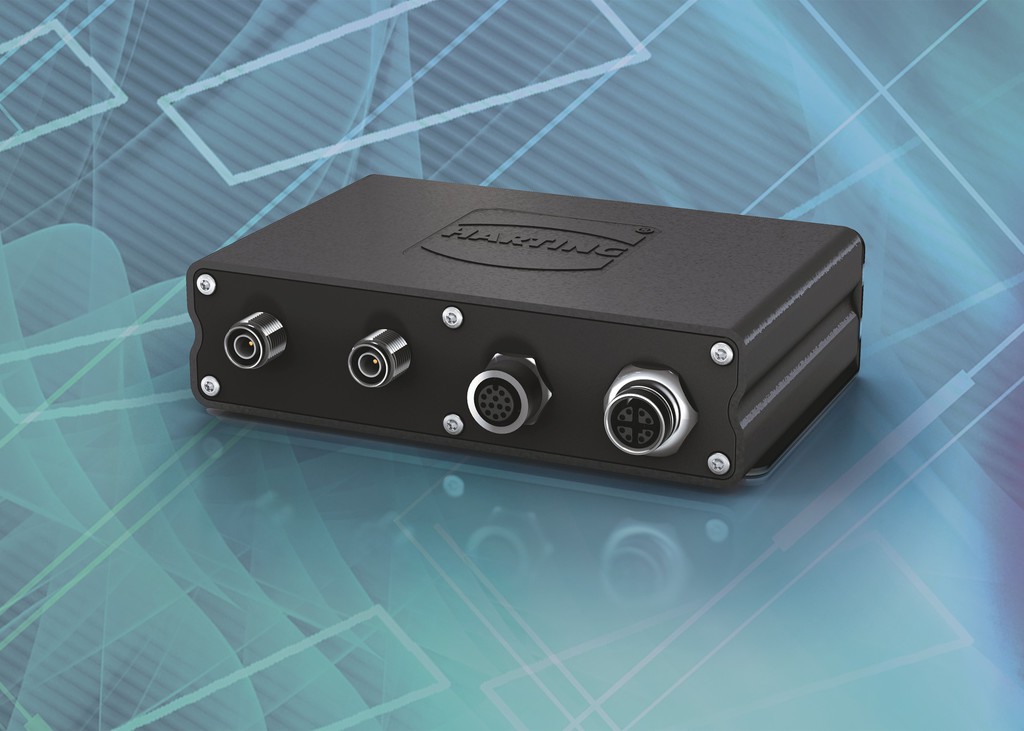

The new Ha-VIS RF-R300 is 100% compatible with HARTING’s GS1 EPCglobal certified Ha-VIS Middleware. This allows users to create standards compliant RFID solutions. With this combination, system integrators can concentrate on solving the customer’s requirements, saving time and money being unnecessarily dedicated to the RFID application.

All connections on the compact housing meet the highest industry standards. The robust M12 HARTING connectors for both the Power-over-Ethernet connection and the eight GPIO (general-purpose inputs and outputs) with optional external power supply are suitable for rugged project environments.

The Ha-VIS RF-R300 UHF RFID reader offers a maximum UHF output power of 0.5 W on the two RP-TNC connectors, allowing it to easily fulfil all the tasks of a mid-range reader. Depending on the antenna and the coaxial antenna cable used, the reader is easily capable of reaching the maximum allowable UHF power of 2 W ERP radiated at the antenna.

Gavin Stoppel, product manager at HARTING, says: “With this new product, HARTING is offering one of the most flexible UHF RFID readers on the market. The Ha-VIS RF-R300 is an important building block that customers can use to turn their Integrated Industry plans into reality."
