Highly dynamic pressure sensor with 500kHz natural frequency

21 March 2018

If you need to measure high pressure in hydraulic and pneumatics systems or highly dynamic pressure measurements in shock tubes or blast tests, Kistler Instruments offers a solution.

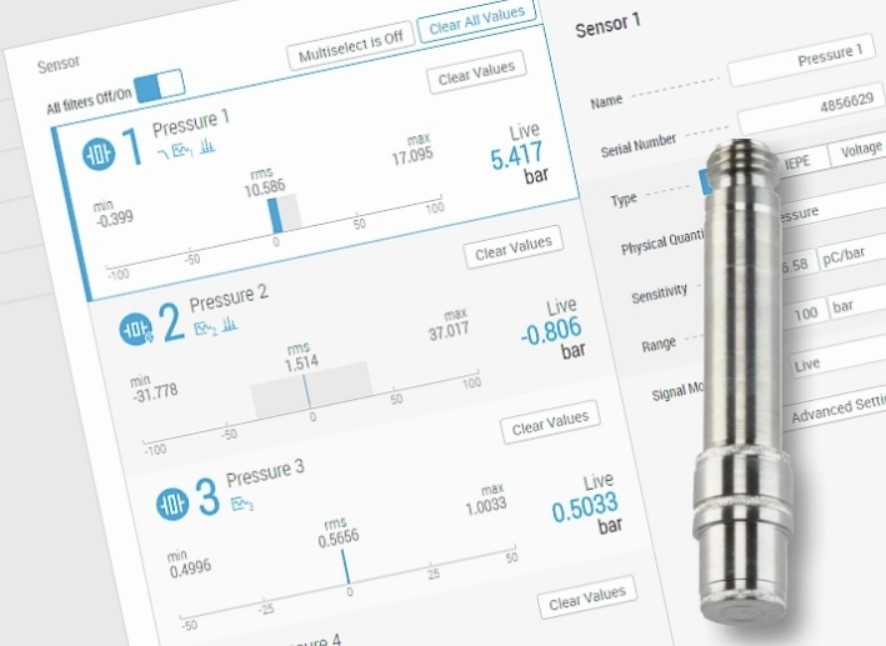

The company's new 1000 bar, miniature Type 603C piezoelectric (PE) pressure sensor has a very high natural frequency of 500kHz which makes it suited to a wide range of applications where highly dynamic pressure transients need to be measured.

The 603C PE sensor can measure small pressure fluctuations, superimposed on a high static pressure, with exceptional resolution. The integrated acceleration compensation ensures reliable measurements even under highly vibrating conditions. In addition, long life reliability and calibration at 10% and 100% of FSO make the sensor easily matched to changing needs, resulting in low cost of ownership.

With linearity typically better than ±0.4% FSO and operating temperature from -196 to +200°C, the new sensor is said to be big in performance but small in size. A 5.5mm diameter, robust, high pressure membrane is mounted in a hermetically sealed, welded, stainless steel housing available in both 37.8mm and 15mm long versions, both with a 6.3mm overall diameter.

The new Type 603C PE pressure sensor has been designed for use with the dual-mode LabAmp Type 5165A series for dynamic pressure and the Type 5167A series for both dynamic and quasi-static pressure measurements.
