Digital projectors & video microscopes

Traditional shadowgraphs allow the critical features of a workpiece to be projected in silhouette but the Schneider digital projector also uses an LED top light illumination system to view additional component features.  This combined with a high resolution digital camera gives a noticeably sharp, distortion free image, clearly displayed on an integrated touchscreen PC.  The software has integrated overlays (eg cross hairs and concentric circles) and allows DXF files to be imported and ‘locked’ over the component for fast definition of circles,  lines, angles and more.

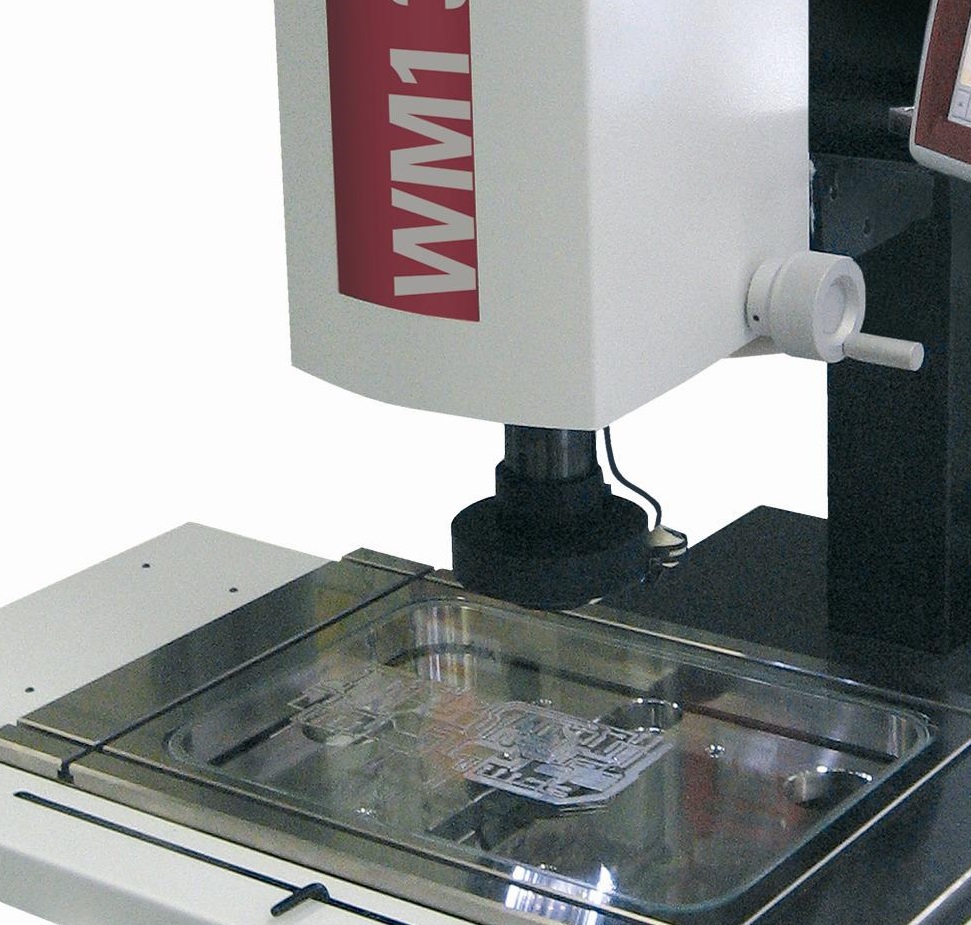

Where more rigorous measurements are required, the Schneider WM1 video measurement microscope takes camera based measurement one step further.  The WM1 combines a high resolution CCD camera with top light illumination and a precision measurement stage for the best possible clarity of image.  The system has precise edge detection in transmitted or incident light conditions.  The CNC model can also be extended into a multi-sensor device with the addition of a tactile probe.  A range of image field sizes are available or manual/motorised zoom can be selected.

Stand H18-341
