General purpose type K thermocouple kit

25 October 2018

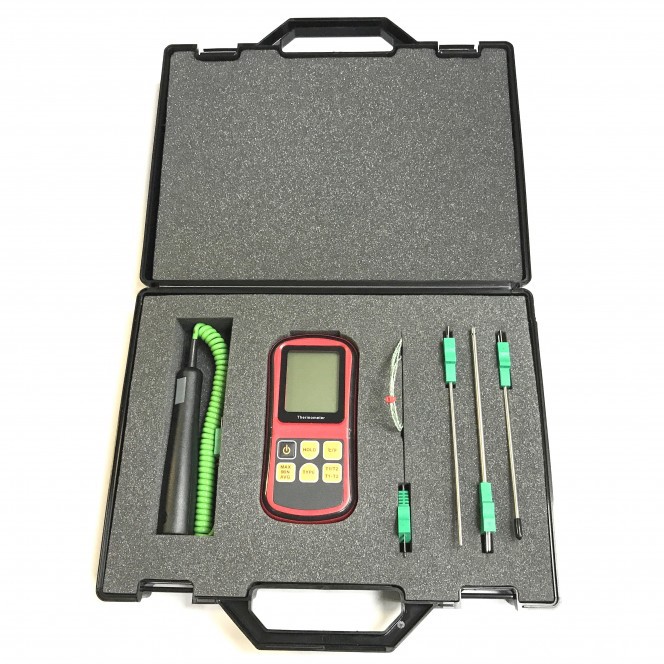

Available from Labfacility, the general purpose type K thermocouple kit comes with three moulded-on type K IEC mineral insulated thermocouples and one type K IEC exposed junction. Moulded-on plug gives a robust construction as well as providing a waterproof termination.

The kit includes:

  • 3 x 110mm general purpose thermocouple with moulded-on miniature plug
  • 4 x 120mm air probe Thermocouple with Moulded-on Miniature type Plug
  • 3.3mm x 115mm Needle Tip Thermocouple with Moulded-on Miniature Plug
  • Exposed Junction thermocouple with Moulded-on Miniature Plug

Also included are one GM1312 general purpose digital thermometer (K,J,T,E,N,R/S); one interchangeable thermometer probe handle Type K IEC, and a carry case.

Specifications:

•  GM1312 General Purpose Digital Thermometer (K,J,T,E,N,R/S):

Resolution:         0.1°C or 0.1°F.

Accuracy:         ± 0.4°C ± 1%

Temp Range:        -200°C to 1372°C (Type K)

Relative Humidity:     0-70% RH

Interchangeable thermometer probe handle Type K IEC

Incorporates a miniature thermocouple socket Allows easy connection of probes

•  General Purpose Thermocouple with Moulded-on Miniature Plug

3.0 x 110mm probe temperature range -40 to +1100°C.

Air probe thermocouple with moulded-on miniature type plug

4.0 x 120mm maximum temperature 250°C

•  Needle Tip Thermocouple with Moulded-on Miniature Plug

3.3 x 115mm probe temperature range: -50°C to +260°C

Exposed junction thermocouple with moulded-on miniature plug

1/0.3mm Conductors 1m in length. Insulation rating -75°C to 260°C
