Synergic welding
25 January 2013
The TRIMIG 255-4S is the latest easy to use 3-phase Synergic MIG/MAG welder from French welding equipment and battery charger manufacturer, GYS. Designed for general fabrication welding and maintenance using mild s

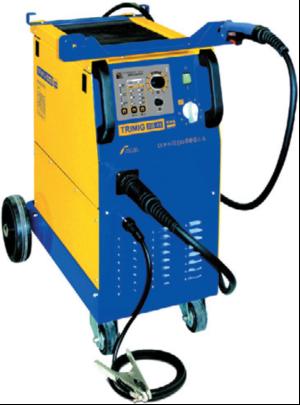

The TRIMIG 255-4S is the latest
easy to use 3-phase Synergic
MIG/MAG welder from
French welding equipment
and battery charger
manufacturer, GYS.
Designed for general fabrication welding and maintenance using mild steel, stainless steel and aluminium, it is well suited for heavy duty welding of mild steel and stainless steel using 1mm dia wire.
The 7.5 kVA, 400V 50/60Hz machine is rated 220A @ 35% duty cycle at 40°C and 150A @ 60% duty cycle at 40°C. Features include three welding functions: normal welding, spot welding with adjustable spot diameter, and delay spot welding with spot welding time adjustment between two spots. The 'synergic welding'mode provides fast, easy setting simply by turning the control on the front panel to 'optimal synergic' then inputting wire type, wire diameter and power.
The equipment will automatically set the optimum wire speed setting.
Designed for general fabrication welding and maintenance using mild steel, stainless steel and aluminium, it is well suited for heavy duty welding of mild steel and stainless steel using 1mm dia wire.
The 7.5 kVA, 400V 50/60Hz machine is rated 220A @ 35% duty cycle at 40°C and 150A @ 60% duty cycle at 40°C. Features include three welding functions: normal welding, spot welding with adjustable spot diameter, and delay spot welding with spot welding time adjustment between two spots. The 'synergic welding'mode provides fast, easy setting simply by turning the control on the front panel to 'optimal synergic' then inputting wire type, wire diameter and power.
The equipment will automatically set the optimum wire speed setting.
