Stainless steel steam trap

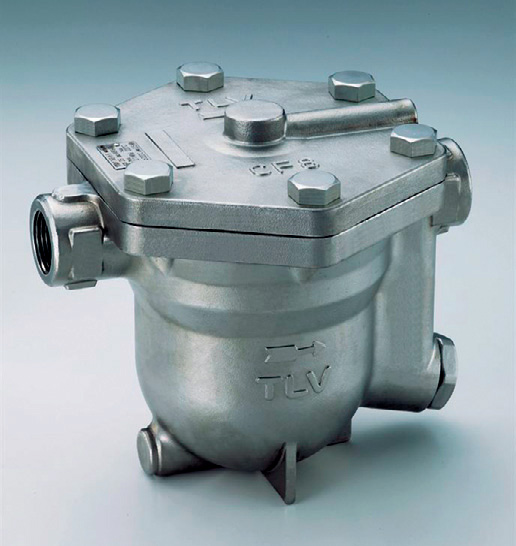

Designed to provide reliable and stable long-term operation, the new J6S-X range of steam traps from TLV Euro Engineering have been sized to complement the company's existing J series range of traps.

The CF8-grade stainless-steel J6SX steam traps feature thermostatic air venting, which operates using the temperature difference between steam and air. Its combination of precision-ground float, constant water seal ensures a steam tight seal, even under no-load conditions.

The free-float steam traps can be installed on a variety of equipment that uses steam as a heat source.

They provide continuous, smooth, relatively low-velocity condensate discharge as loads vary. The selfmodulating design features a single moving part - the free float - which prevents concentrated wear and provides a long, low-maintenance life. In addition to its compact size and larger condensate discharge capacities, J6S-X steam traps have an 'X-element' to provide a powerful, automatic air vent function.

Stainless steel construction makes the J6S-X suitable for specifications requiring high levels of durability and corrosion resistance. Maximum operating temperature for the range is 220°C.
