Efficiency boosted

The condenser fan, relocated to the roof of the unit, provides an optimised thermodynamic performance and an incorporated condenser protection grill minimisies the risk of damage during transit and installaltion.

The temperature of the chilled water supplied for enclosure cooling is not as critical as that used in process cooling. Spindle cooling demands the cooling medium is supplied within a tolerance of ± 0.5 K, to guarantee the necessary accuracy in processing, otherwise the thermal expansion of the components will cause inaccuracies in the machined workpiece.

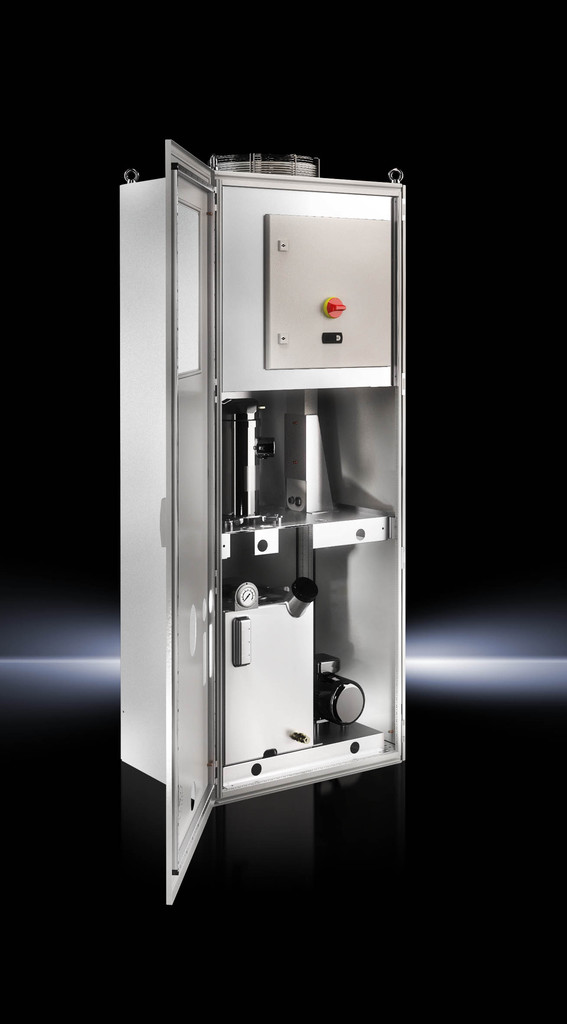

The TopTherm Inverter Chiller has a variable speed compressor powered by a brushless DC motor, the speed of which is controlled by an inverter, to deliver the cooling medium at a temperature with the required accuracy.

 This technology, in conjunction with other optimised components in the refrigerant circuit, an electronically controlled expansion valve and energy efficient electronically commutated fans, has culminated in a range of chillers with a capacity range of 2-19.5kW, a chilled water temperature tolerance as low as ± 0.2K and an energy efficiency ratio of up to 3.3.
