Revamp for core drills

28 November 2013

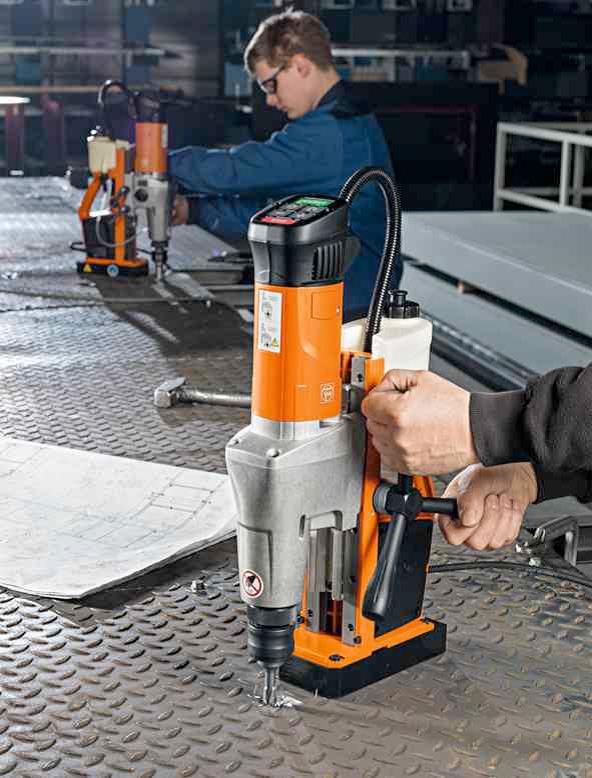

Core-drilling specialist FEIN has revamped three of its KBM magnetic core drills with 50 and 65mm diameters.



In the process, it has undertaken a number of product improvements, including a centrally positioned drill motor cable guide with swivel-mounted cable hose, a 30mm longer and reinforced drill motor guide for greater precision, an intuitive control panel in the user's direct line of sight and an extra-large stroke range. The tools have a low weight for their performance class.



Simple to operate, the new magnetic core drills, KBM 50 Q, KBM 50 U and KBM 65 U, were designed to high technical standards, which helps them deliver a long service life in tough conditions.


They are said to meet all the requirements of core drilling in metal: core drilling, twist drilling, countersinking, tapping and reaming. Clockwise/anti-clockwise rotation and electronic speed setting allow the speed to be adapted to any application. A double drill-motor guide is reported to give the tools the largest stroke range on the market. They can therefore also be used with longer accessories. The stroke range can be adjusted without the help of tools; utilising two clamping levers on the drill motor side. The core drill bit can also be changed at speed, again without any tools: one click and the drill bit is fitted and running at high concentricity.
