Monitoring system for rotary kilns
30 April 2014

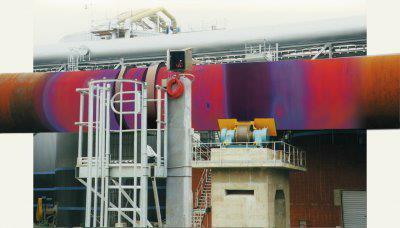

Raytek's new CS210 system for non-contact temperature measurement and monitoring of rotary kiln shells integrates up to four infrared line scanners for monitoring long and difficult-to-access kilns.

Additionally, point sensors cover shadow areas, for instance behind tyres. Designed for rotary kilns exclusively, the software compiles all data to a complete thermal image. The upgrade also enables a real-time display of a 3D thermal image of the kiln surface, making refractory monitoring user-friendly.
Damaged and fallen bricks are quickly located. The system provides a one-brick resolution and sends failsafe hotspot alarms. A Refractory Management database helps determine when best to replace the refractory. All oven-related and operational data, information about the refractory material, and maintenance dates can be easily managed and documented with a user history.
A separate sensor monitoring the burning zone can also be integrated and managed via the software.
