Bearing calculation software expanded

The BEARINX-online Easy RopeSheave software enables engineers to calculate the static load safety factor and rating life of both single and multiple rope sheave bearings. It is available exclusively online and can be used free-of-charge. Initial registration takes little time and the user can begin calculation work immediately.

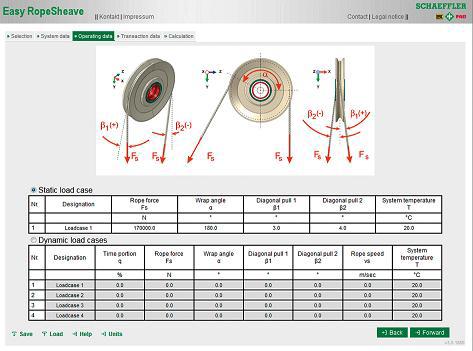

At http:\\bearinx-online-easy-ropesheave.schaeffler.com users can quickly and safely browse and compare a range of different rope sheave bearing designs. The self-explanatory menu and navigational tools enable users to enter data quickly and easily for modelling, bearing selection and operating data.

Technical data on rolling bearings, deep groove ball bearings and tapered roller bearings manufactured by Schaeffler are stored in a database. These can be accessed and integrated into the design calculation process at any time. Application-specific parameters can also be considered for design calculations.

BEARINX enables users to calculate, display and document the specific bearing loads in detail, while taking operating and environmental conditions into account – even for complex system and machine designs. During calculations, the software considers the contact pressure on every single rolling element.

The dedicated software module for rope sheave bearing supports even enables multiple adjacent rope sheaves to be calculated precisely. BEARINX takes into account factors such as the non-linear elastic deflection behaviour of the rolling elements, contact angle shifts in radial ball bearings caused by the load, elasticity of the axis, and changes in the real contact pressure depending on the skewing and profiling of the rolling elements.

Saved BEARINX files can be transferred to the Schaeffler UK Technology Centre, which can support and review the calculation if required. The objective is to offer customers optimised and efficient support for product development at all times and in doing so, to help reduce development times wherever possible.
