Re-design for energy recovery units

The company says as much as 94% of the electrical energy used by industrial compressors is converted into heat and lost through radiation in the compression process. The remaining 6% is converted into compressed air heat losses. The ER units recover up to 94% of this thermal energy to heat water to 90°C for process and domestic applications.

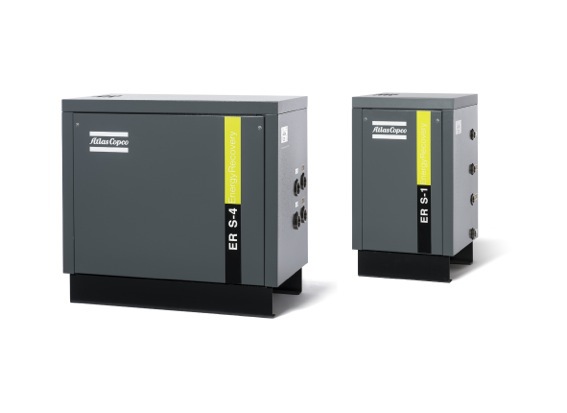

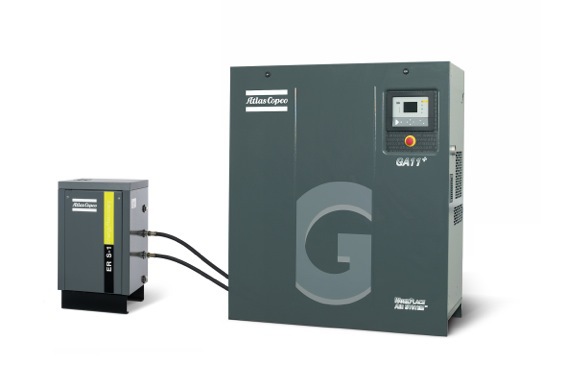

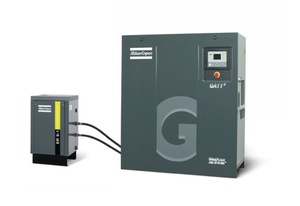

The fully pre-assembled, plug-and-play range comprises three single cooler models: ER S1, S2 and S3 and two twin-cooler versions, ER S4 and S5, designed for optimum oil pressure and flow through the unit. All of the Atlas Copco ER units’ mechanical parts are pre-mounted within the canopy to reduce commissioning time, simplify maintenance and to minimise the risk of incorrect connections.

The ER heat exchangers are now vertically configured to reduce unit footprints; compared with previous models, the single cooler version’s floor space dimensions are now reduced by 66% and those of the twin-cooler model by 33%.  The units are offered with the option of complete, corrosion-free stainless steel construction, for applications where water purity is critical, or as a lower-priced stainless steel plate, copper brazed alternative, which provides a lower price alternative for non-critical water applications.

All ER units are provided with temperature sensors for ER water inlet and outlet temperature levels, these conditions can be displayed on the compressor Elektronikon controller or the ER unit energy saving counter, if fitted. Additionally, the SMARTLINK remote monitoring system allows users to continuously monitor and analyse these and other compressor conditions via an online portal. This feature allows easy creation of energy saving reports for ISO50001, ISO14001 and ESOS accreditation.

A 3m connection kit is supplied as standard while extension kits of up to 6m are an option. In addition, there is an energy counter module – factory-fitted or available as field sales kit – that monitors energy saving data.
