Elastomer coated pumps

16 May 2016

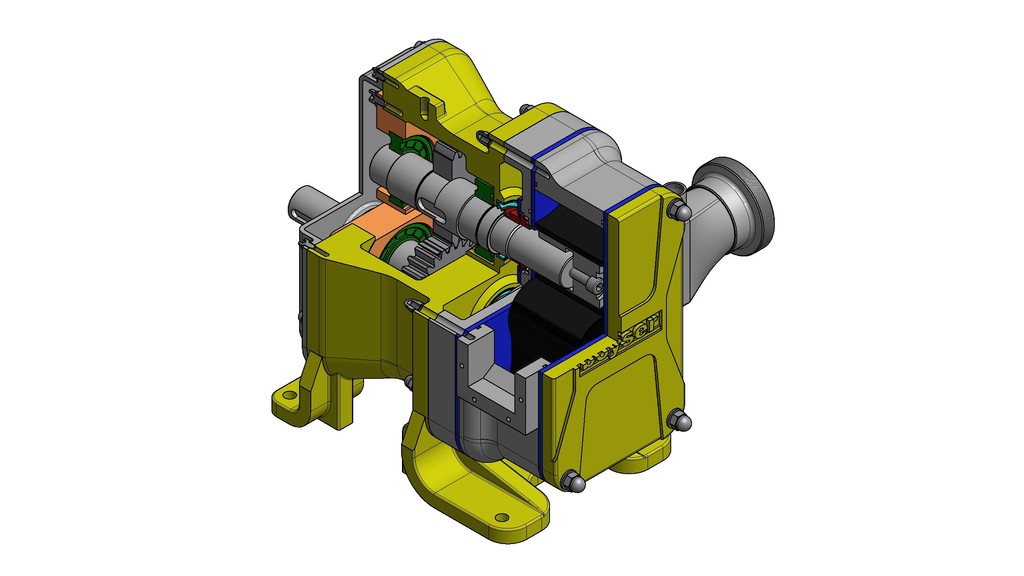

AxFlow has extended its range of positive displacement pumps, introducing the Boyser LB suite of elastomer-coated rotary lobe pumps for flows of between 5m and 130m³/h.

Ergonomic rotors designed in conjunction with Universitat Autonoma in Barcelona, maximise the sealing face while allowing the passage of particles up to 50mm in size. The rotors can be coated in NBR (FDA), EPDM and Viton or supplied in AISI-410 and 316 stainless steel.

The special intermediate chamber that isolates the pump head from the gear box avoids any kind of cross contamination. The pumps use robust, high precision gears with self-aligned roller bearings that ensure that the rotary lobes deliver high levels of accuracy and efficiency and use a range of process quality mechanical seals.

Stainless steel axial liners incorporated in the pump chamber protect the pump casing, helping to maintain the pump’s performance. They are easy to replace, thereby boosting pump life.
