Portfolio extended

12 December 2015

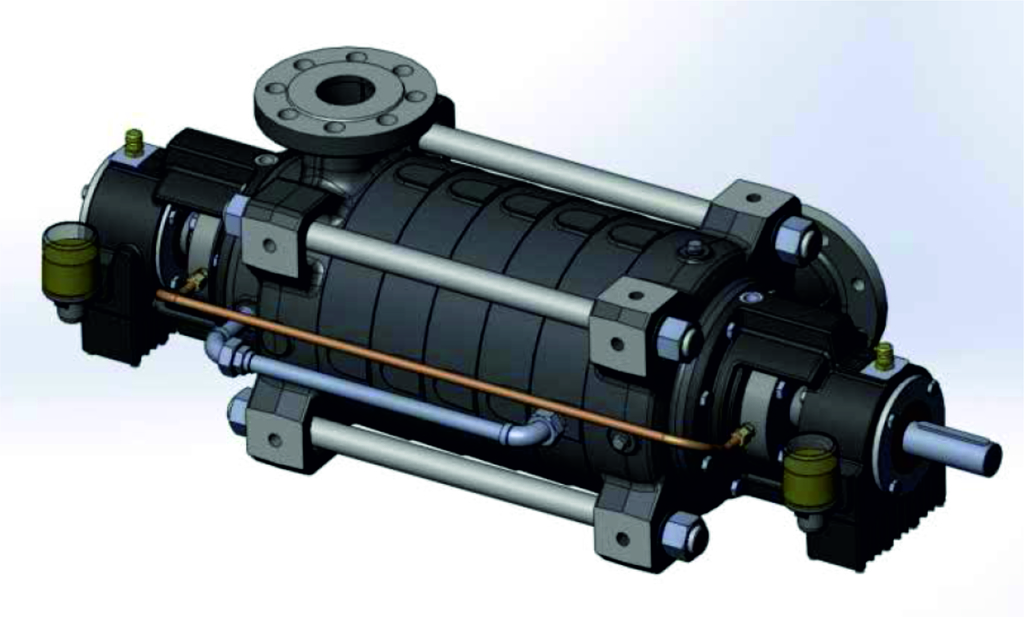

AxFlow has extended its portfolio of Aturia high pressure centrifugal pumps with the introduction of the TKK model. The TKK is a multi-stage, horizontal between bearing mounted pump and is available in several sizes.

Delivering flows up to 500m³/hr and with a suction flow of 25bar and delivery pressure of 100bar, the TKK comes with a maximum head 0 880m and can accommodate fluids up to +160°C.

The pump design incorporates PN25 suction flanges and PN100 delivery flanges, with suction and delivery nozzles being capable of 90° rotation in easy stages.

Axial balance thrust created by the single impeller is balanced by a hydraulic throttle bush, with residual thrust being absorbed by the axial bearing. The seal chamber has been designed to accommodate API628 mechanical seals, and pumps are supplied with balanced cartridge seals.
