Deep end of versatility

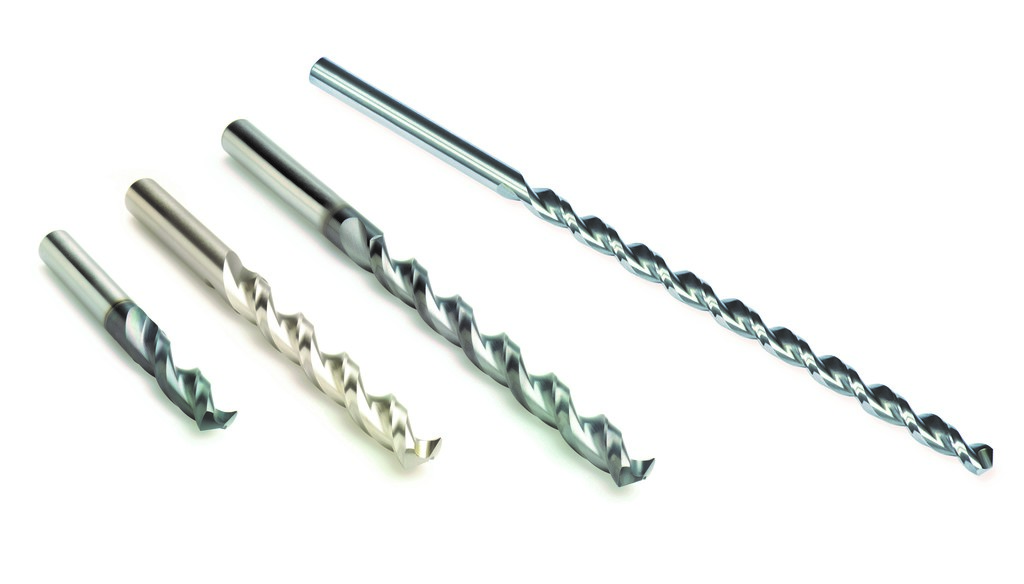

Providing a cost-effective option for a wide range of applications, all PFX drills are manufactured from high speed cobalt steel and suitable for use in a variety of materials for drilling depths from 3xD to 25xD.

This includes 3xD stub (A920, A921), 6xD jobber (A900, A901), 10xD long series (A940, A941) and 15xD to 25xD extra length (A976, A977, A978). All feature a straight shank and parabolic flute design for increased chip space and improved evacuation.

The company says this design allows greater hole-depths to be achieved in some cases without the need for pecking.

A thick web increases the structural strength of the drill for greater rigidity and reduces the risk of tool breakage. In addition, a special point geometry provides additional benefits including excellent centering, eliminating the requirement for a pilot hole and reducing the cycle time of the application.

Also, it reduces thrust force and power requirements, ensuring accuracy is maintained throughout the depth of the hole.
