Workholding magnet modules

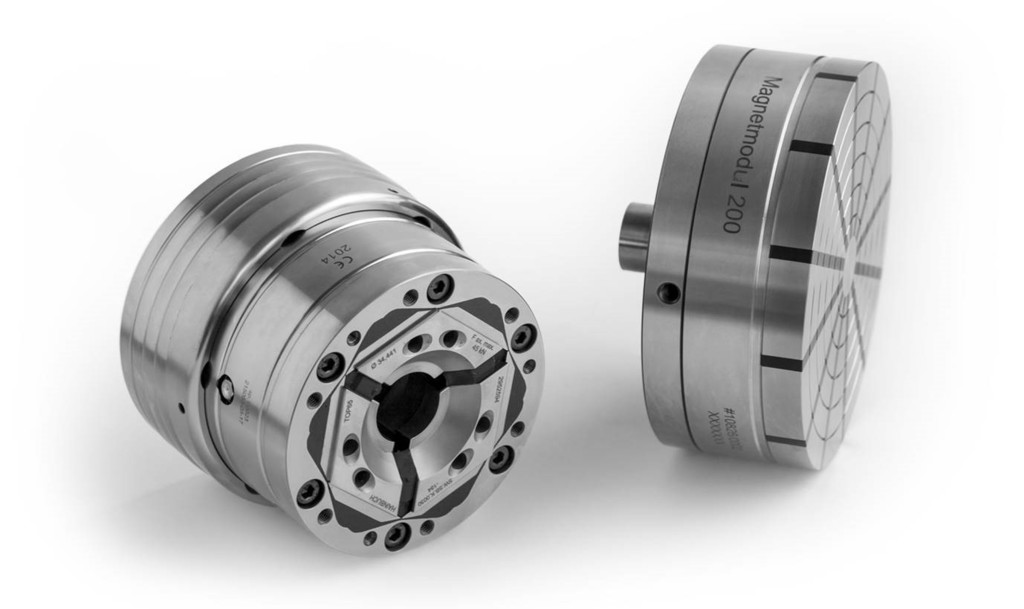

Developed with Neodymium 'Super Strength' magnets, the new Magnet Modules are compatible with standard Hainbuch workholding chucks, such as TOPlus and SPANNTOP systems. With just a single screw that activates the magnet, the Magnet Module provides ease of use and very fast clamp and un-clamping times. Incorporating a magnet on/off operation screw and super strength magnets that provide a maximum holding force of up to 140N/cm², the device is both flexible and robust.

Suitable for use with the Hainbuch range of 'pull-back' clamping devices, Magnet Modules can be set-up in the machine tool in less than 30 seconds. A lifting eye bolt enables modules to be manoeuvred easily into the work envelope of the machine tool. The Magnet Module delivers a positional change over accuracy of 2μm.
