Torque sensor

For highly dynamic measurements the cut-off frequency of 10kHz may be user customised by an integrated, digital, low-pass filter and the second measurement range can be flexibly scaled up to 1:10 or 1:5 of the rated torque. The new, fully scalable magnetoresistive speed and angle measurement system has a pulse frequency up to 8,192 pulses per revolution, with twin tracks displaced by 90° to provide clockwise and anticlockwise indication. A reference pulse is also available.

The fully digital, contactless signal transmission delivers a standard accuracy of 0.05% with ±0 – 5/10V DC signal outputs, an RS-232C serial data output and a USB interface.

The new, robust design is suitable for use in oil mist and other contaminated environments and Kistler says overload protection of the lower range ensures reliable measurement with the greatest possible dynamics and accuracy in the most demanding industrial applications. The IP40 protection and anodised aluminium housing minimise routine maintenance needs in real world, production applications.

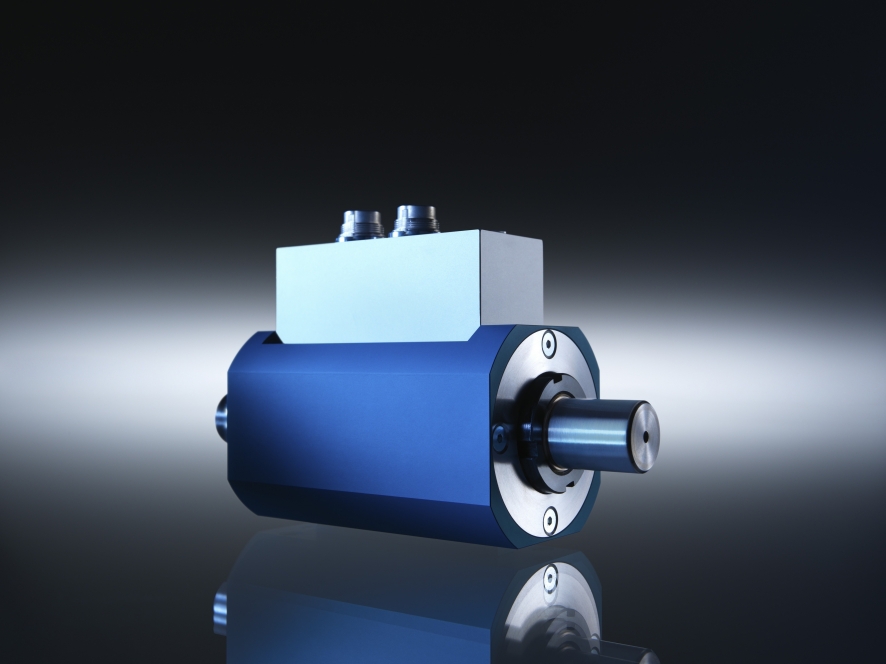

The new Type 4503B torque sensor provides industrial users the benefits of sensors which enable reliable measurement results and provide a solution that can be tailored to each application. Being compatible with previous versions, the new torque sensor can be integrated into existing systems with minimal effort. More information is available on the Kistler web site at http://tinyurl.com/KIL-4503B.
