AODD pump for food and beverage industry
02 July 2018

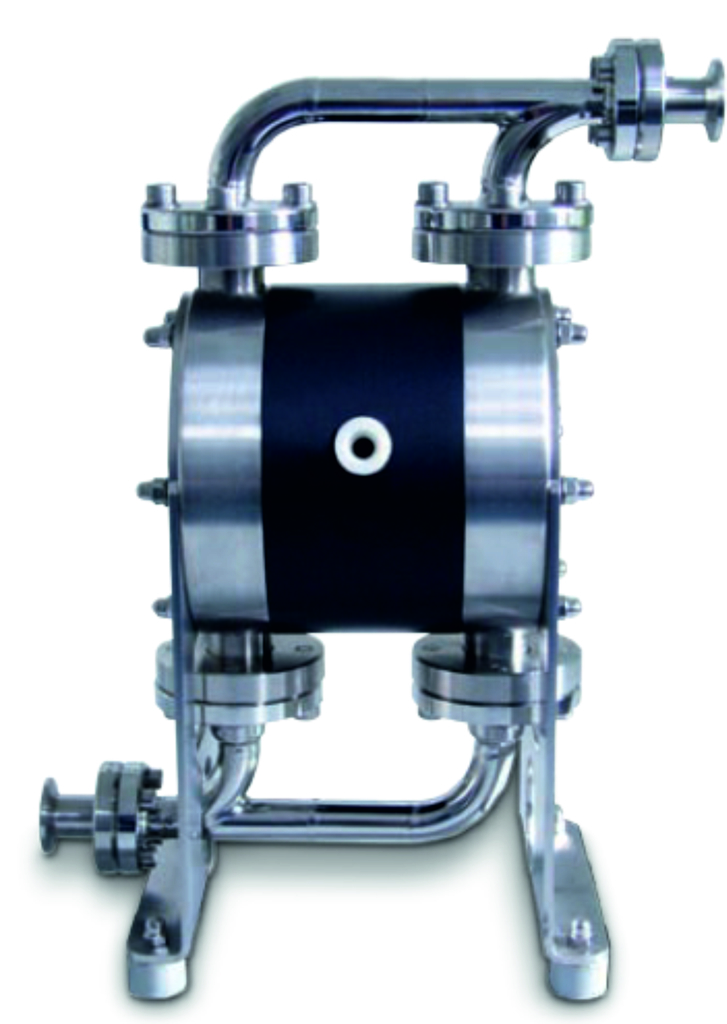

AxFlow has introduced the new MM Series of AODD pumps from Almatec. These are designed specifically to meet the standards, regulations and operational requirements that govern the food and beverage industry.

Using food-grade wetted materials and a construction that provides easy cleaning, the pumps also feature soft redirections without rotating parts and shaft seals in the product chamber. This design feature, when combined with the pump’s gentle displacement principle, results in a pumping solution suitable for a wide variety of food and beverage applications.
The MM Series’ materials and design enable CIP and SIP capabilities. Construction materials comply with FDA Standards, and pumps equipped with PTFE diaphragms and ball valves also comply with EC1935/2004. In addition, the pumps are ATEX conforming according to the 2014/34/EU directive.
Available in three sizes they achieve maximum capacities of 3.5 / 9.2 / 20m3/h, maximum discharge pressure to 7 bar and a short-term temperature range to 130°C for cleaning processes. The pump is also available with different hygienic manifold connection options.
Applications:
- Transfer and filling of beverages, sauces, toppings etc.
- Dosing of food and beverage ingredients
- Processing of meat, pastry and dough, smoothies, fruit pulp, candies
- Transfer and filling of cosmetics
