Gas Detection
29 July 2013
EC61 stand alone gas detector A high sensitivity sensor for the detection of gas concentration. The stand alone gas detector is available in two models. EC61 for use on natural gas detection and the EC62 used for LPG and cylinder liquid gas.
- Pre-alarm LED signal when below the L.E.L
- Internal audible alarm
- Automatic gas solenoid valve shut off
- Continual sensor diagnostic tests
- Fault indication
- Mute override for 10 minutes
- Insulated shock resistant enclosure
- Complies with UNI CEI 70028 standards
- IMQ homologation
- 230v 50Hz

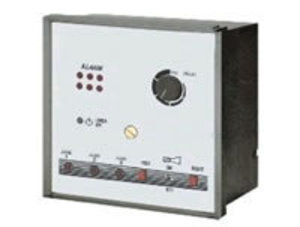

3 zone gas detection
The EC30 gas detection electronic control centre is used for the detection of gas within industrial environments. Natural gas, town gas, LPG and cylinder gas can be detected using the various sensors available. This unit will provide gas detection for three separate zones.
- Visual LED indication for three separate zones
- Internal audible alarm
- Adjustable alarm time delay
- IP40 protection
- Wall or panel front mounting
- Insulated enclosure
- Two SPDT relays for use of closing the gas solenoid valve and BMS alarms
- Alarm delay setting – up to 60 seconds
- Complies with CEI EN 60730-1 standards
- 230v 50Hz or 12vDc

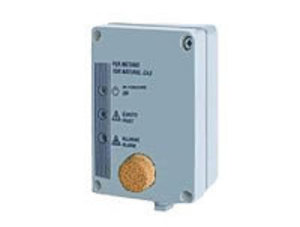

Detection heads
These gas sensor heads are to be used with either EC30 or EC50 gas detection units. There are two types available, the EC71 for natural gas and light gas, the EC72 for LPG heavy gases. The sensor for alarm is set below the L.E.L level (Lower Explosion Limit) however there is internal regulation for the sensitivity if required.
- Green LED for power on indication
- Red LED for gas presence indication
- Amber LED for fault indication
- Anti-shock casing material
- IP54

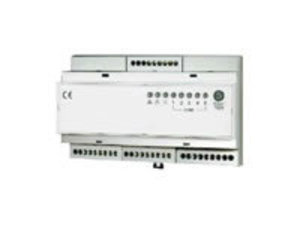

5 zone gas detection
The EC50 gas detection electronic control centre is used for the detection of gas within industrial environments. Natural gas, town gas, LPG and cylinder gas can be detected using the various sensors available. This unit will provide gas detection for five separate zones.
- Visual LED indication for five separate zones
- Internal audible alarm
- Adjustable alarm time delay
- Din Mounting
Insulated enclosure - Two SPDT relays for use of closing the gas solenoid valve and BMS alarms
- Alarm delay setting – up to 60 seconds
- Complies with CEI EN 60730-1 standards
- 230v 50Hz
