Fieldbus module combines three basic functions
13 June 2019

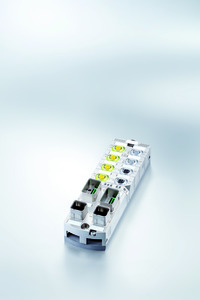

Available from Murrelektronik, MVK Fusion is designed to enable companies to standardise modular processes, opening the door to a one-module strategy.
The PROFINET/PROFIsafe module unites three basic functions of installation technology:
- Standard digital sensors and actuators
- Safety digital sensors and actuators
This combination enables unique automation concepts to be realised and installation becomes simpler and faster.
MVK Fusion makes complex configurations easier because they can be done entirely by the engineering tool in the safety control system. Software developers and electrical engineers no longer need in-depth knowledge of other manufacturers' tools and manuals.
MVK Fusion makes it possible to have fewer fieldbus modules per unit. Some applications might only require a single module. This opens up new opportunities for many automation applications.
Murrelektronik says what makes the MVK Fusion fieldbus module unique is its variety. It combines three basic functions: standard digital sensors and actuators, safety digital sensors and actuators and IO-Link.
- The two standard digital ports can be configured as inputs or outputs – they are customisable for each application.
- The four safety ports ensure that almost all digital safety requirements are integrated into the installation.
- The two IO-Link ports offer a wide range of functions: they integrate smart devices into the fieldbus system and they also enable the system to be expanded cost-effectively via IO-Link hubs.
MVK Fusion simplifies installation by minimising the number of modules required.
Flexibility within safety applications
MVK Fusion integrates all safety aspects into one module:
- Safety sensors signals are transmitted over the three safe input ports, each of which have two channels. Emergency stop buttons, light curtains, two-handed units, safety doors, etc. can be qualified up to Performance Level e.
- The safety output port has two safe outputs that can be configured according to the application (PP, PM or PPM switching). You can integrate a wide variety of actuator types like double valves and valve islands that still qualify up to Performance Level e.
- A special Class B IO-Link port ensures that IO-Link devices like valve islands and hubs can be easily and safely switched-off complying with safety standards up to Performance Level d.
MVK Fusion lets you achieve high safety standards, protecting both man and machine.
MVK Fusion simplifies configuring safety sensors and actuators: select the safety function in the safety control system engineering tool, and within a few mouse clicks configuration is done.
Users – usually the software developer or the electrical engineer – do not require any special knowledge to configure the module. The MVK Fusion module eliminates the extra verification work step (CRC calculation) and doesn’t require additional manufacturer-specific software. This speeds up the process because it prevents entry of incorrect data.
MVK Fusion is said to be excellent for high power applications when reliability cannot be compromised. The module is 100% compatible with PROFINET solutions and is suitable for Conformance Class C (IRT), Shared Device and Netload Class III applications.
Wide range of uses and diagnostics
- Rugged, fully-moulded metal housing made for a wide range of uses, such as extreme welding applications.
- MVK Fusion saves error information with a time stamp on an integrated web server, even in the event of power failure, helping you identify errors and reduce downtimes.
- The safety address is set directly on the module via rotary switch – MVK Fusion can also be restored to its default setting via the address 000.
- The module functions at high outdoor temperatures (to 60°C) in combination with high currents (to 16A). Murrelektronik offers an optional heat sink for extreme conditions, which extends the life of the module.
- The module can be used at altitude to 3000m.
- Each channel is monitored for problems such as overloads, sensor shorts or short circuits – the comprehensive diagnostics detect errors quickly, so they can be analysed and fixed.
