Mini Compack electric steam boiler, Midi Compack electric steam boiler and Dragon electric steam boiler
04 May 2016
A compact high efficiency electric steam boiler, designed for applications with small steam demands, such as laboratories, clothing industries, or food processing.

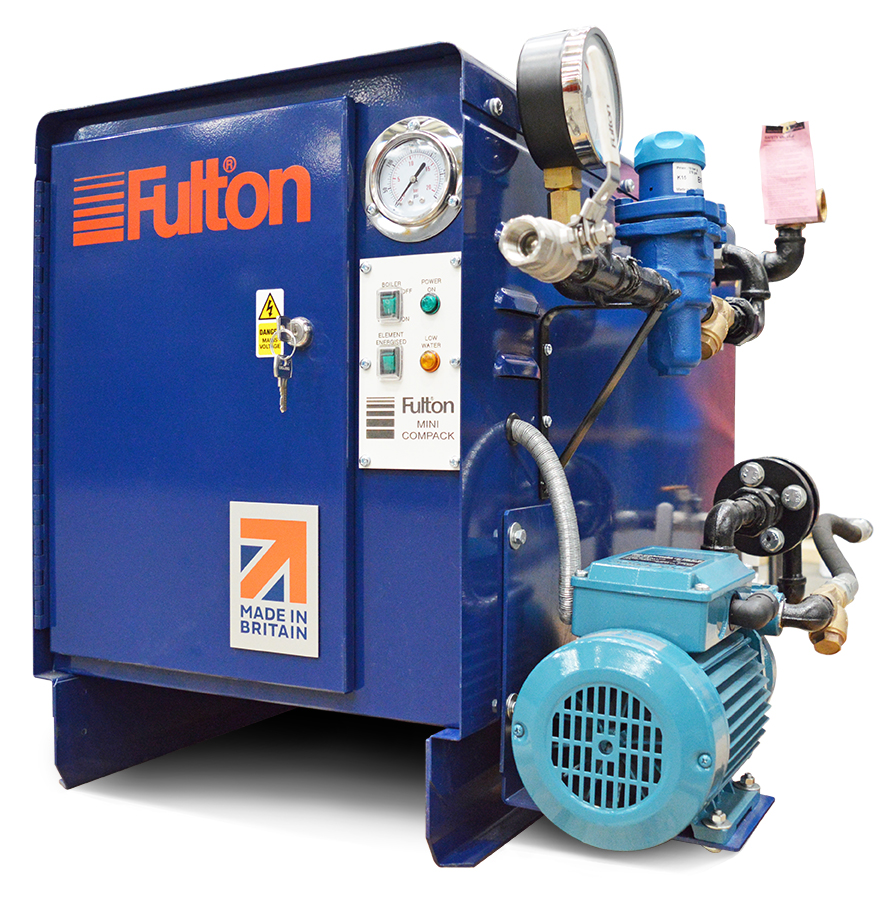

The Fulton Mini Compack is the smallest, most compact electric steam boiler in the range and is designed to fit into small spaces, e.g. under a bench or desk.
For customers requiring higher outputs, Fulton’s three-model Midi Compack range is available with outputs from 24kW to 48kW.
· 4 Models: 9kW - 17.5kW
· Output: 14 kg/h - 29 kg/h (F&A 100°C)
· Operating Pressure 5.8 barg
· Long Life ‘Incoloy’ Elements
· Feed Pump Incorporated
· Robust Epoxy/Polyester Coated Finish
· Five Year Guarantee on Pressure Vessel
The boilers can be supplied as a factory-built, skid-mounted package where the boiler, feedwater tank, blowdown vessel and water treatment system are incorporated with all interconnecting mechanical and electrical services.

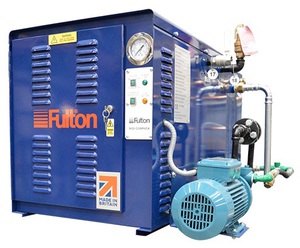

Midi Compack electric steam boiler
The Fulton Midi Compack electric steam boiler is a larger version of the Fulton Mini Compack, delivering higher steam outputs.
· 3 Models: 24kW - 48kW
· Output: 38 kg/h - 77 kg/h (F&A 100°C)
· Operating Pressure 10.34 barg
· Long Life ‘Incoloy’ Elements
· Feed Pump Incorporated
· Robust Epoxy/Polyester Powder Coated Finish
· Five Year Guarantee on Pressure Vessel
The boilers can be supplied as a factory-built, skid-mounted package where the boiler, feedwater tank, blowdown vessel and water treatment system are incorporated with all interconnecting mechanical and electrical services.

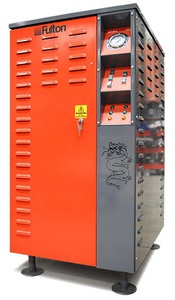

Dragon electric steam boiler
The Fulton Dragon is a highly efficient boiler and is designed to meet the requirements of users with a smaller steam demand. The six models (18kW to 72kW) in the company’s Dragon range provide steam pressureat 10.34 barg. The extremely compact range is used extensively in laundry & dry cleaning, food & drink, industrial processing, hospitals and laboratories, steam rooms and pilot plants, in the garment industry and for humidification.
The Dragon range is fitted with low watt density “Incoloy” elements that can be operated independently to allow boiler output to match steam demand. Safety and operating controls are mounted on the front panel, allowing easy access. Each element can be operated independently, giving the user flexible control over steam outputs.
· 6 Models: 18kW - 72kW
· Output: 29 kg/h - 115 kg/h (F&A 100 °C)
· Operating Pressure 10.34 barg
· Long Life ‘Incoloy’ Elements
· Feed Pump Incorporated
· Robust Epoxy/Polyester Powder Coated Finish
· Five Year Guarantee on Pressure Vessel
The boilers can be supplied as a factory-built, skid-mounted package where the boiler, feedwater tank, blowdown vessel and water treatment system are incorporated with all interconnecting mechanical and electrical services.
