High-torque fastening tool

Dan Fleming, product manager at Ingersoll Rand, comments: “In heavy-duty, high-risk environments like oil and gas, infrastructure construction, and power generation, the accuracy of applied torque is critical. In these high-performance industries time is valuable. The QX Series Cordless Torque Multiplier replaces manual, inaccurate fastening methods with a traceable method that is quicker and more effective.”

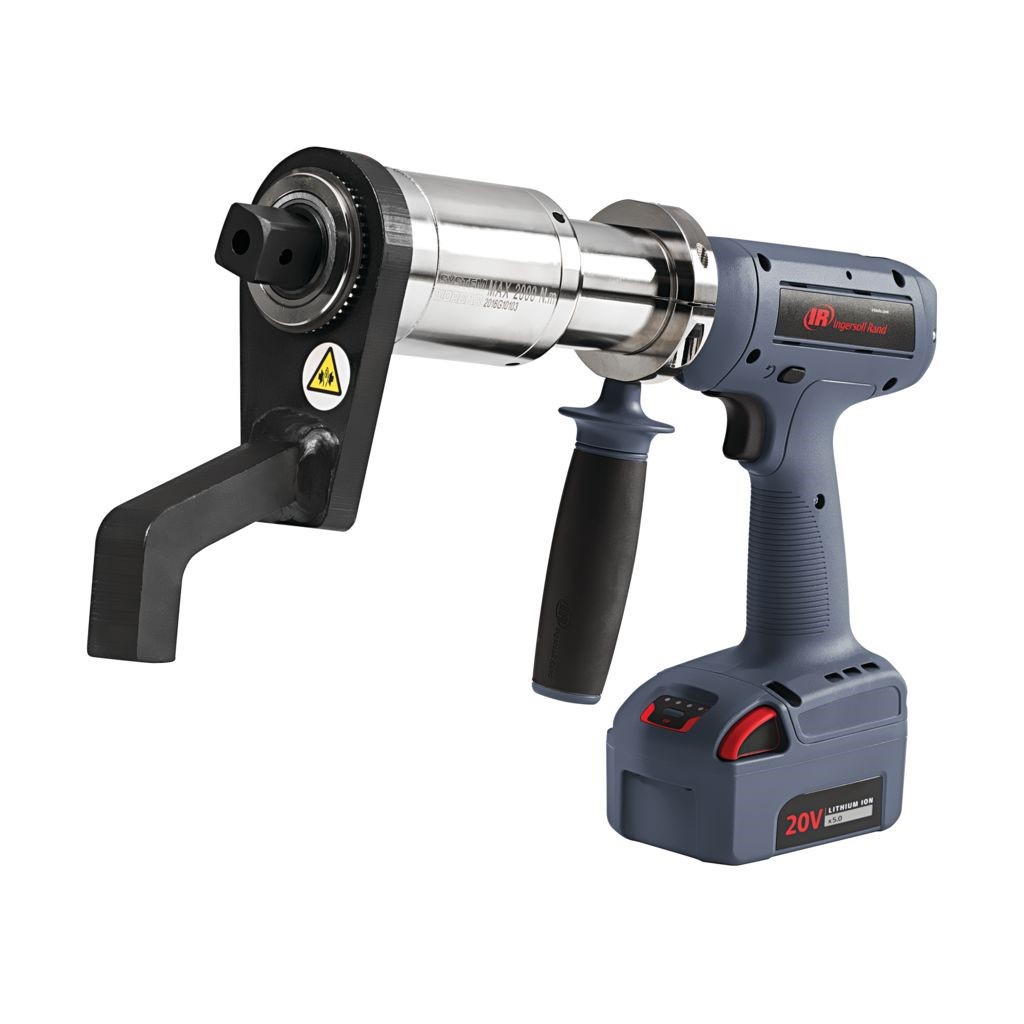

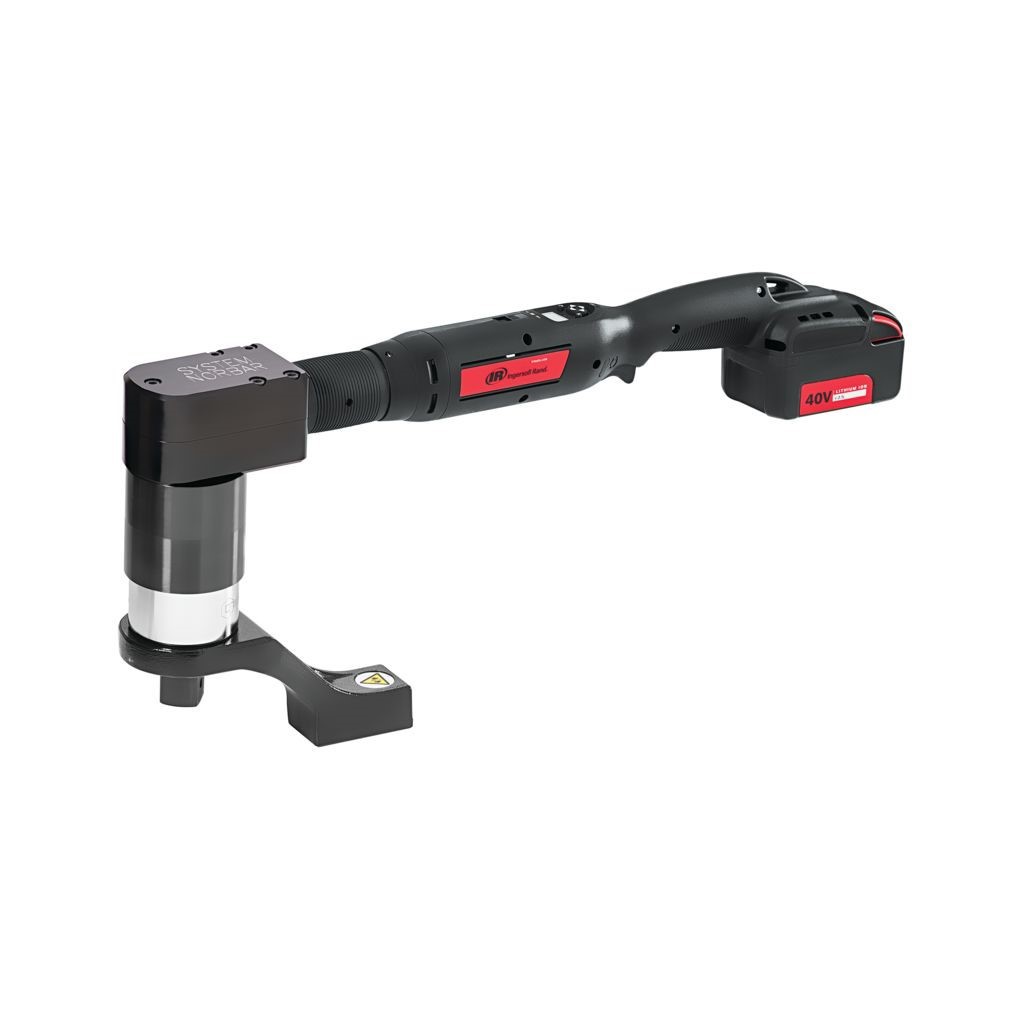

To meet heavy-duty fastening needs, the QX Series Cordless Torque Multiplier has a brushless motor paired with a premium gearbox to generate 160 times the torque of the company's standard QX Series tool. It is available in five different combinations of torque and speed capability, ranging from 40 to 2000Nm and 5 to 45 revolutions per minute (rpm). At its heart is the Ingersoll Rand closed-loop transducer, which ensures torque precision, accuracy, and traceable results.

The tool has user-programmable configurations for torque, angle and gang count. These functions can be navigated directly on the tool or programmed from a computer. Up to eight programs can be stored in the tool. The multi-function display module provides feedback via red, yellow and green lights, signalling whether the bolt has exceeded, or not met, the torque limit or angle, or if the proper gang count was reached.

The tool can store records for up to 1200 fastenings, which can be downloaded to a computer via a USB cable or wirelessly transferred to a dedicated Process Communication Module (PCM). Reliable data is available for review, analysis and record keeping at any time.

Operators can move freely without the inconvenience of bulky air or hydraulic hoses, or power packs, because the Torque Multiplier is cordless and compact. The 360-degree adjustable handle affords the operator a comfortable grip and provision for a tether point. These features boost flexibility when working on multiple joints and accessing odd angles.

Ingersoll Rand’s patented closed-loop transducer control at the heart of the tool delivers a torque accuracy of ±5%.

The QX Series Torque Multiplier stands up to a variety of tough applications, including:

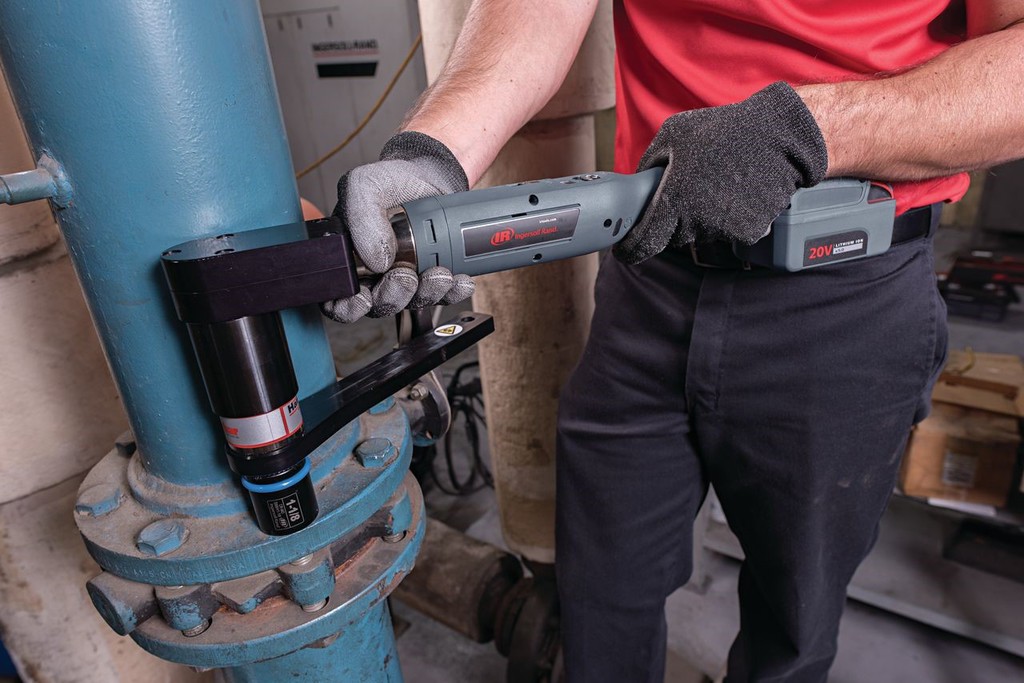

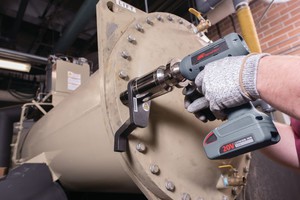

• Oil and gas-flanges, heat exchanges and high pressure valves
• Infrastructure- bridges, road ways and steel structures
• Heavy equipment- excavators, diesel and gas engines and construction equipment
• Wind and power generation- gearboxes, general maintenance, turbines, generators and valves connections and flanges
• Rail car maintenance, locomotive assembly, infrastructure installation and maintenance

The tool operates on the Ingersoll Rand IQV20 Series battery system and each 20V battery charge will rundown an average of 100 bolts.

The QX Series Precision Torque Multiplier can be purchased as an individual tool, or in a kit that includes the tool, two IQV20 batteries, one battery charger and a carrying bag.
