Sensor range extended
25 January 2013
A new piezoelectric press force sensor with a measuring range of up to 700kN extends the scope of Kistler Instruments' force sensors from 100N to 700kN. Designed for measuring dynamic and quasistatic forces, the range i

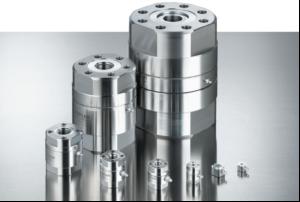

A new piezoelectric press force sensor
with a measuring range of up to
700kN extends the scope of Kistler
Instruments' force sensors from 100N
to 700kN. Designed for measuring
dynamic and quasistatic forces, the
range is supplied pre-loaded and
calibrated for three ranges.
An overload factor of 100 obviates the need for expensive protection.
Sensors are protected to IP65 with detachable cable or IP67 with a welded cable.
The constant accuracy of the piezoelectric element allows a single sensor to be used over a wide load range. Typically, the 700kN sensor has three calibrated ranges; 7kN, 70kN and 700kN. Flexibility may be extended using the range switching capability of the Kistler ICAM charge amplifier. This wide measuring range makes the sensors suited to production and measuring stations handling a wide variety of components.
An overload factor of 100 obviates the need for expensive protection.
Sensors are protected to IP65 with detachable cable or IP67 with a welded cable.
The constant accuracy of the piezoelectric element allows a single sensor to be used over a wide load range. Typically, the 700kN sensor has three calibrated ranges; 7kN, 70kN and 700kN. Flexibility may be extended using the range switching capability of the Kistler ICAM charge amplifier. This wide measuring range makes the sensors suited to production and measuring stations handling a wide variety of components.
