ARTICLE

Electropack electric steam boiler, E.F.S (electric flash steam) boiler and Europack electric steam boiler

04 May 2016

Electropack is Fulton’s versatile seven-model range designed for steam loads between 29 and 160kg/h.

It is fully packaged in an attractive modern case and all services are connected at the rear for easy installation. The Electropack offers unrivalled flexibility and mobility in a compact unit that occupies minimal floorspace. It is easily moved to provide point-of-use steam wherever required and the heating elements are individually switched to allow the boiler to respond quickly and efficiently to variable steam demands.

The Electropack range is ideal for “clean environments” in applications such as pharmaceutical, medical, chemical and food and beverage processing. EP18-EP72 models have an integrated feedwater tank and feed water pump, all in one compact unit. The EP100 is supplied with a separate feedwater tank. The Electropack will fit through a standard door opening, making it easy to be used in office and laboratory environments.

  • 7 Models: 18kW – 100kW
  • Output: 29 kg/h – 153 kg/h (F&A 100°C)
  • Operating Pressure: 10.34 barg
  • Integrated Feed Water Tank (EP18 - EP72)
  • Integrated Feed Water Pump
  • Removable Panels for Easy Servicing
  • Five Year Guarantee on Pressure Vessel

The boilers can be supplied as a factory-built, skid-mounted package where the boiler, feedwater tank, blowdown vessel and water treatment system are incorporated with all interconnecting mechanical and electrical services.

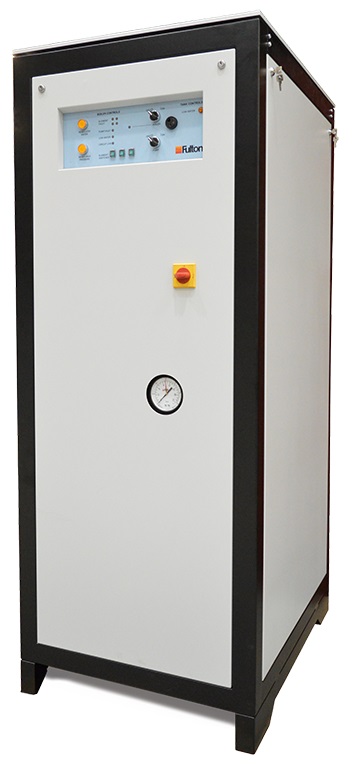

E.F.S (electric flash steam) boiler

Fulton’s six-model EFS range has been designed specifically to deliver the short period/high demand steam loads that are needed for applications such as medical autoclaves and sterilisers. The fully automatic, self-contained steam boiler range incorporates an integrated feed water tank and feed water pump and provides short duration steam pulses at a steady pressure, typically 3 barg. The EFS is able to meet fluctuations in steam loads and meets the short-term peak flow rates of a typical sterilizer cycle. The boiler is designed to reduce entrainment of water droplets to a minimum and, as a result, produce high quality, contaminant-free steam.

EFS boilers are quiet, clean and efficient and are protected with a fail-safe control system to ensure trouble-free operation in medical environments.

  • 6 Models: 18kW – 72kW
  • Output: 29 kg/h – 115 kg/h (F&A 100°C)
  • Operating Pressure: 10.34 barg
  • Integrated Feedwater Tank
  • Integrated Feedwater Pump
  • Five Year Guarantee on Pressure Vessel

The boilers can be supplied as a factory-built, skid-mounted package where the boiler, feed water tank, blowdown vessel and water treatment system are incorporated with all interconnecting mechanical and electrical services.

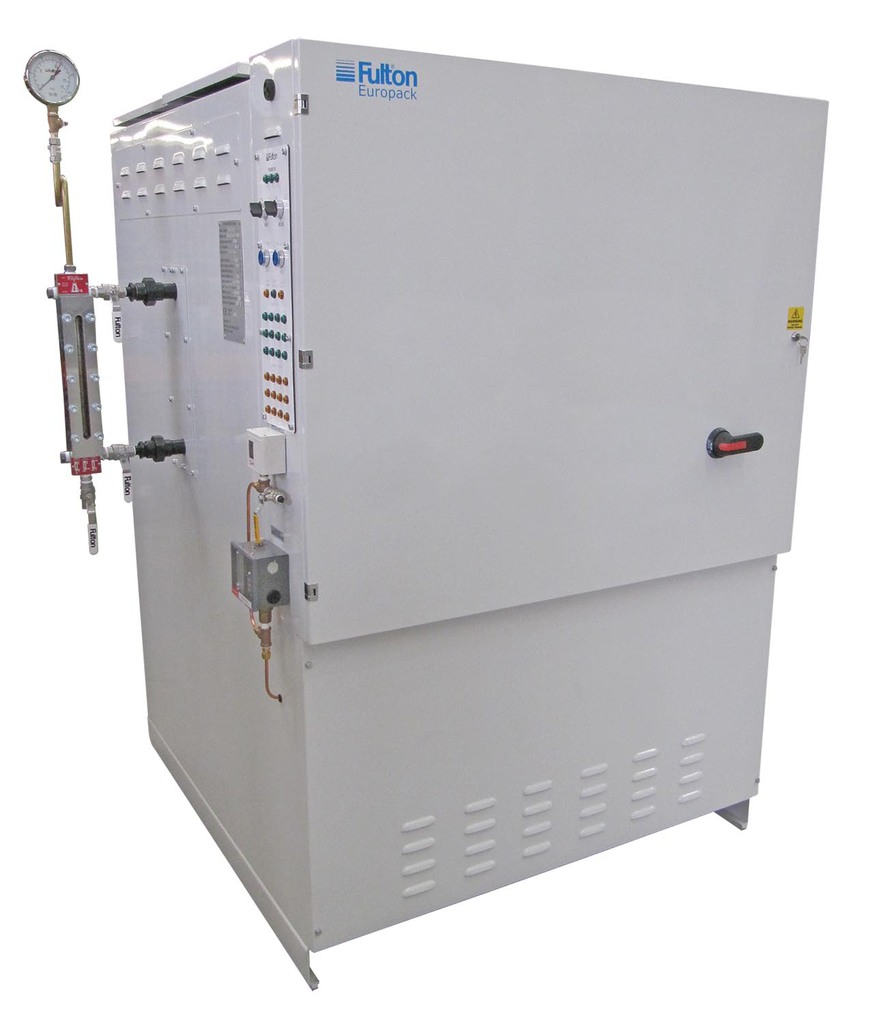

Europack electric steam boiler

The four models in Fulton’s highly-efficient Europack range are designed to meet the requirements of the mid-range demand steam user and are particularly suitable for applications in the medical, chemical and food industries. The four models are available with outputs from 150kW to 300kW and an operating pressure of 10.34 barg.

The boilers can be supplied as a factory-built, skid-mounted package where the boiler, feedwater tank, blowdown vessel and water treatment system are incorporated with all interconnecting mechanical and electrical services.

  • 4 Models: 150kW - 300kW
  • Output: 239 kg/h - 479 kg/h (F&A 100 °C)
  • Operating Pressure 10.34 barg
  • Multi-Element:
    Allows the boiler to perform better with the challenge of fluctuating steam demand.
  • Five Year Guarantee on Pressure Vessel

The boilers can be supplied as a factory-built, skid-mounted package where the boiler, feed water tank, blowdown vessel and water treatment system are incorporated with all interconnecting mechanical and electrical services.
