Infrared control facilitates wireless crane operation

The company says one of the principal advantages of the DIR system over radio controllers is the shorter range, of some 40m between the transmitter and sensor(s), which is of benefit when the operator wants to limit the distance at which the crane can be controlled, for safety reasons. This ensures that operators are always in close proximity to the equipment, providing a clear view of the lifting and moving process. There is no risk that the IR control system will be influenced or impaired by radio systems and the IR offers no potential for interference with other radio controls.

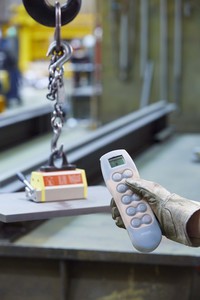

The DIR’s rugged handheld transmitter housing is based on the design used for Demag radio controls, so users will be familiar with the controller layout and can use the same keypad concept for both transmission methods. Transmitters are offered in two sizes for two-stage control, with six buttons (DIR 6) and 10 buttons (DIR 10) for the control of two or three motion axes, respectively.

Like Demag radio control systems, up to 10 crane systems may be controlled simultaneously in an enclosed area. For multiple controller operation, switchover between transmitters is monitored to ensure that the control systems are clearly assigned to specific cranes.

The high contrast bi-colour display provides a clear overview of the device and warning information, which affords the highest level of safety. The integrated vibration alarm and stop function conform to Category 3, Performance Level ‘d’ to the relevant standard EN 13849-1. Convenient and simple crane control is assured at short distances, of up to 15m, as the rays from the high performance infrared LEDs are reflected by the surrounding structure, eliminating the need for the transmitter to be pointed directly at the sensor.

High performance rechargeable batteries ensure operating times of up to 30h with one charge. The unit can be conveniently charged on an optional inductive charging station.

In addition to providing reliable wireless control of industrial cranes, the Demag DIR may also be used to control suspension monorails, transfer carriages and other materials handling equipment.
