Measuring technology

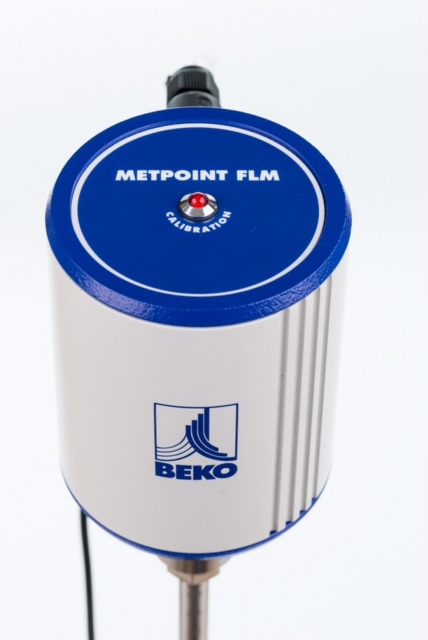

The SF13 has been designed for decentralised consumption measurements close to the actual consumers. It comes with a display showing the measured parameter values and configuration regarding the required gas type or LEDs indicators, signalling that calibration is due. The device is available for flow-optimised measuring section diameters of DN8, DN15, DN20, DN25, DN32, DN40 and DN50. All sensors come with a digital RS485 MODBUS output as standard and are dimensioned for operating pressures up to 16 bar.

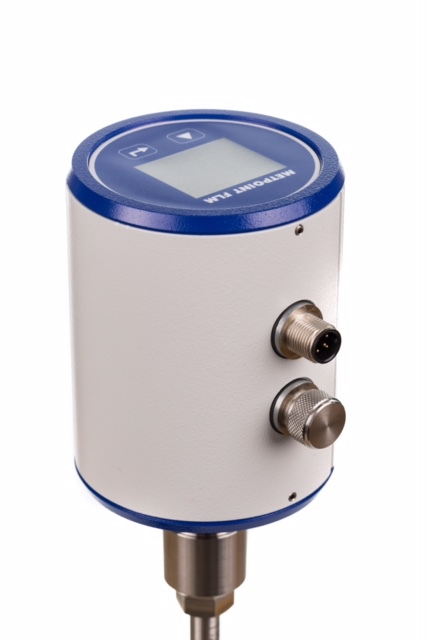

The SF53 is a sensor for centralised consumption measurements and features a display showing the measured parameter values and configuration regarding the required gas type or LEDs indicators, signalling that calibration is due. It can be easily installed, even if the system is under pressure. The matching plug-in probes come in sizes 120, 220 and 400mm. All SF53 sensors come with a digital RS485 MODBUS output as standard and are dimensioned for operating pressures up to 50 bar. Display is optional.

Both sensors are ready for connection to a Metpoint BDL or BDL compact data logger, as the BDL data loggers are already preconfigured accordingly.
