New features for pencil screwdrivers

14 September 2017

Makita’s compact but powerful 7.2V pencil drill driver and impact driver now have a host of enhanced features – more rpm, more tightening torque and enhanced controls.

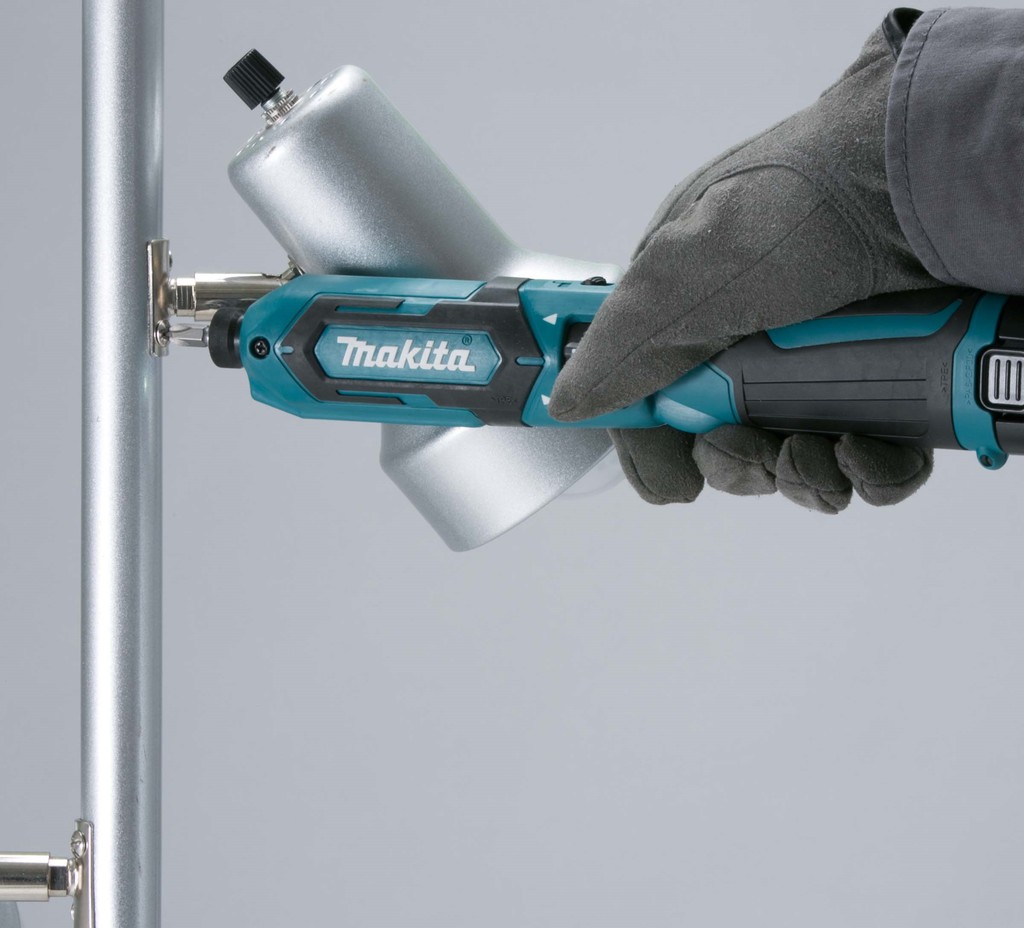

These pencil screwdrivers weigh just over 0.5kg and can be used in either pistol grip mode or as 'in-line long handle' powered screwdrivers. Applications for the impact driver include the manufacturing and assembly of white goods and electronic devices.

The new Makita TD022DSE 7.2v pencil impact driver will now run up to 2450rpm, deliver up to 3000 impacts per minute and generate 25Nm of tightening torque, which is sufficient to drive home a M8 standard bolt or machine screw. A new rotary switch on the motor body selects forward variable speed and reverse rotation.

The Makita DF012DSE pencil drill driver has two speed ranges, up to 650rpm with a maximum 3.6Nm of tightening torque on high speed and on low speed up to 200rpm, that can deliver 5.6Nm of torque. With 21 + drill settings selected by the rotating collar on the chuck housing, this ¼in hex drive drill will drive a 5mm hole in steel and 6mm in timber. This high torque accuracy is protected by two auto-stop functions. Low battery power is indicated by a lamp and when this reduces further the motor automatically stops to prevent incomplete fastening. Additionally, when the drive achieves the set torque fastening the clutch is disengaged and drive stops.

Both pencil drivers feature LED job light, ergonomic soft-grip handle and 1.5Ah batteries.
