Versatile digital flame analysis

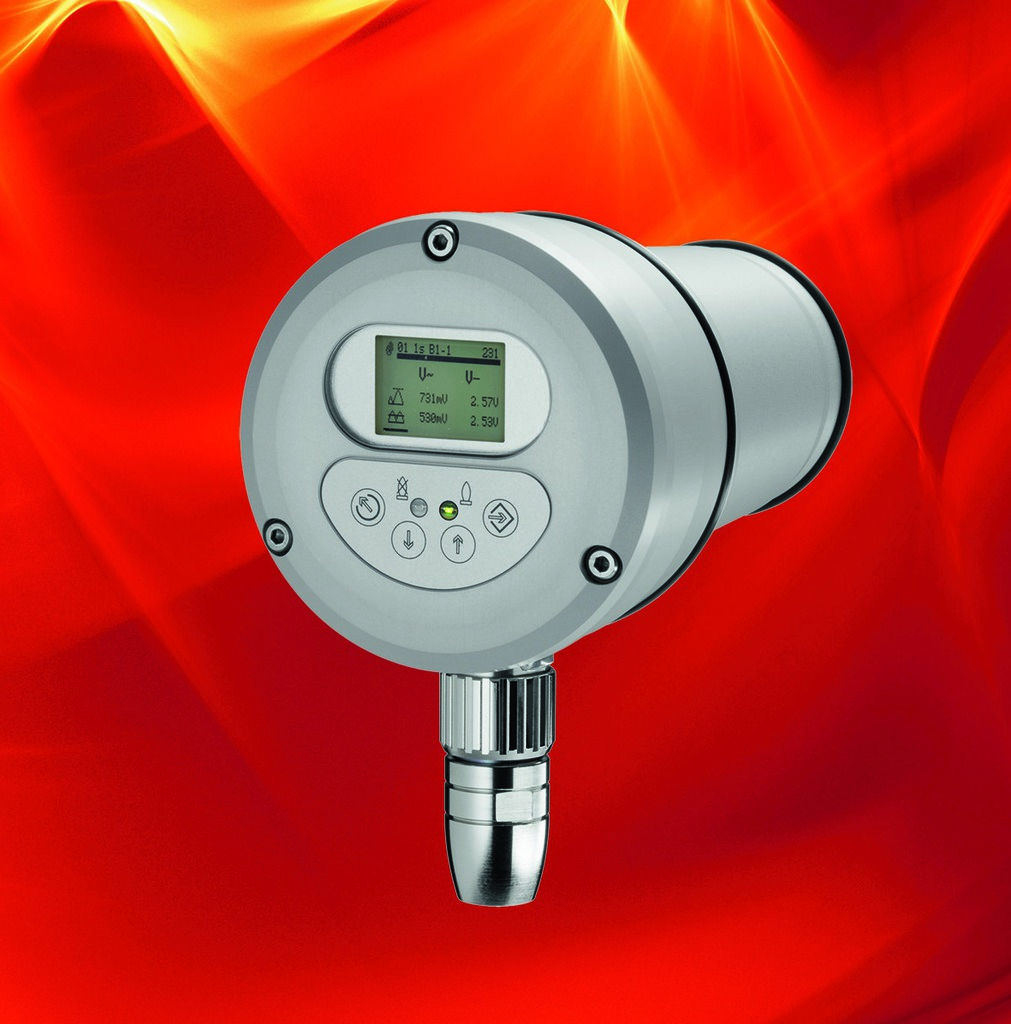

Each model employs a semi-conductor sensor with dual processors to allow for continuous operation. The F300K is a single unit compact flame scanner which includes amplifier and relay units.

The new F300K UVIR-1 model has dual UV & IR sensors making it one of the most versatile flame scanners on the market. It is suitable for challenging applications, such as multi-burner installations, where diverse fuels are used or where there is excessive background radiation.

Three channels allow for specific detection parameters to be applied for different fuels and operational situations – effectively the F300K is three scanners in one.

Up to 32 F300K scanners can be networked and connected to a PC for real-time flame analysis and trend-logging.

The F300K has an operating range of -40°C/+85°C which can be further extended using heating jackets and air cooling housings. A comprehensive range of mounting accessories is available to facilitate ease of use.

The standard housing is IP67 rated and certified for use in Hazardous areas to Ex Zone 2.
