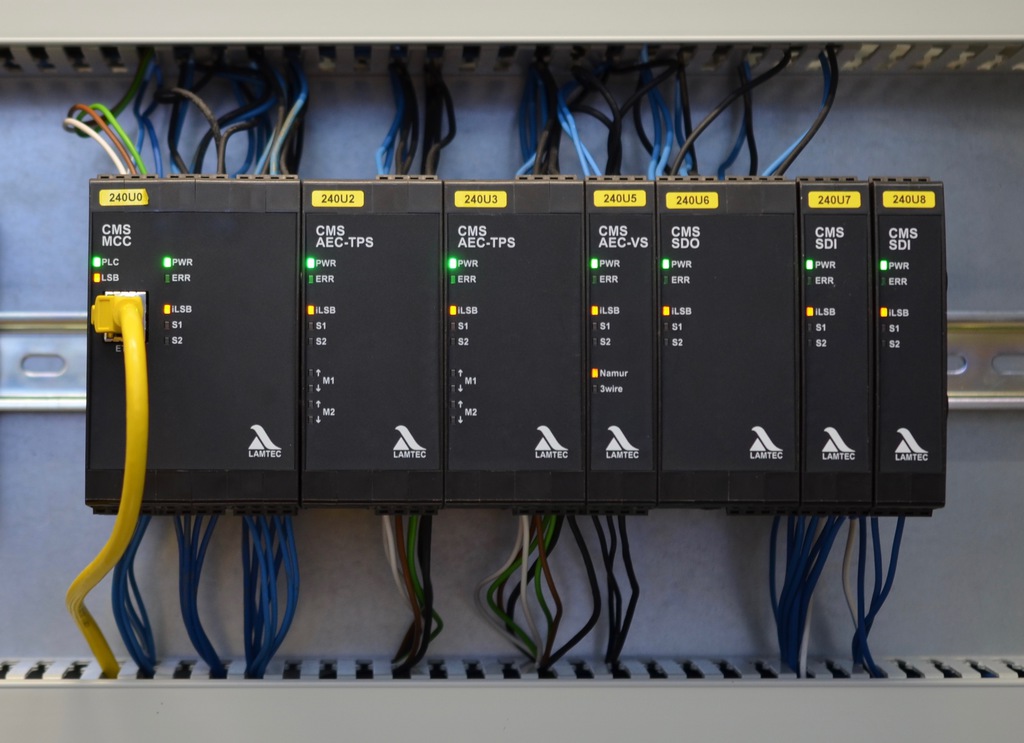

Combustion management system for burner control

The modular approach allows designers to build flexible, scalable and cost effective Burner Management Systems that can address contemporary requirements such as those demanded by low-NOx burner technology and the popularity of biogas, off-gas, syngas and other exotic fuels.

Up to 10 output channels can be configured to control a variety of control element components, such as air and recirculation dampers, fuel valves and VSDs.

Oxygen trim and CO control can be included at the design stage or added later; LAMTEC’s flue gas probes and analyser are all compatible with the CMS and are integrated easily using the company’s dedicated LSB system bus. Oxygen trim and CO control help boost efficiency and system safety. CO control dynamically finds the stoichiometric curve throughout the firing range and adjusts the combustion fuel/air to run efficiently whilst remaining safe.

For applications that cannot be addressed using standard configurations and parameterisation, the CMS enables experienced/trained customers to freely programme non-safety critical functions using CODESYS soft PLC IEC 61131-3 development software.
