RB/RBC
28 April 2016

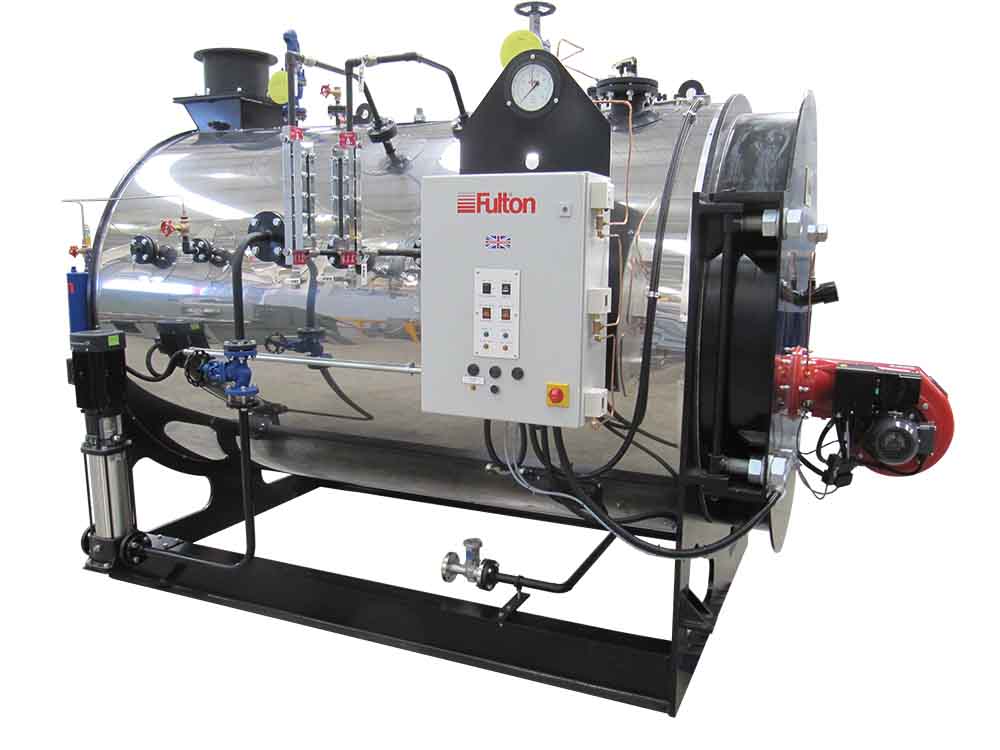

Developed in response to customer demand for higher capacities than the 1565 kg/h maximum for its vertical range, the nine-model RB/RBC range (with outputs ranging from 957 to 4787 kg/h) can be specified with matched multi-stage oil, modulating gas or dual-fuel burners as standard, with other burners available on request.
The RB/RBC has been designed to provide superior performance, long life and low maintenance. It is highly efficient, safe and reliable and there are many unique design features that make it one of the most efficient and durable boilers available.
The boilers meet current and anticipated legislation and have been engineered to provide a substantial performance margin. They are constructed to BS2790, 1992 Class 1 standard with a maximum working pressure of 10.34 barg.
- 9 Models: 600kW – 3000kW
- Output: 957 kg/h – 4787 kg/h (F & A 100˚C)
- Operating Pressure: 10.34 barg
- Matched Oil, Gas Burners
- Long Life
- Low Maintenance
- Full stainless steel cladding giving a smart appearance
- Removable access panels for weld inspections
- Industry leading thermal efficiencies
- Three Year Guarantee on Pressure Vessel
The boiler ancillary equipment can be supplied as a factory-built, skid-mounted package where feedwater tank, blowdown vessel and water treatment system are incorporated with all interconnecting mechanical and electrical services.
