Production crimper with slide bearing technology
01 August 2019
HM crimpers with UNIFLEX slide bearing technology are said to be setting new standards.

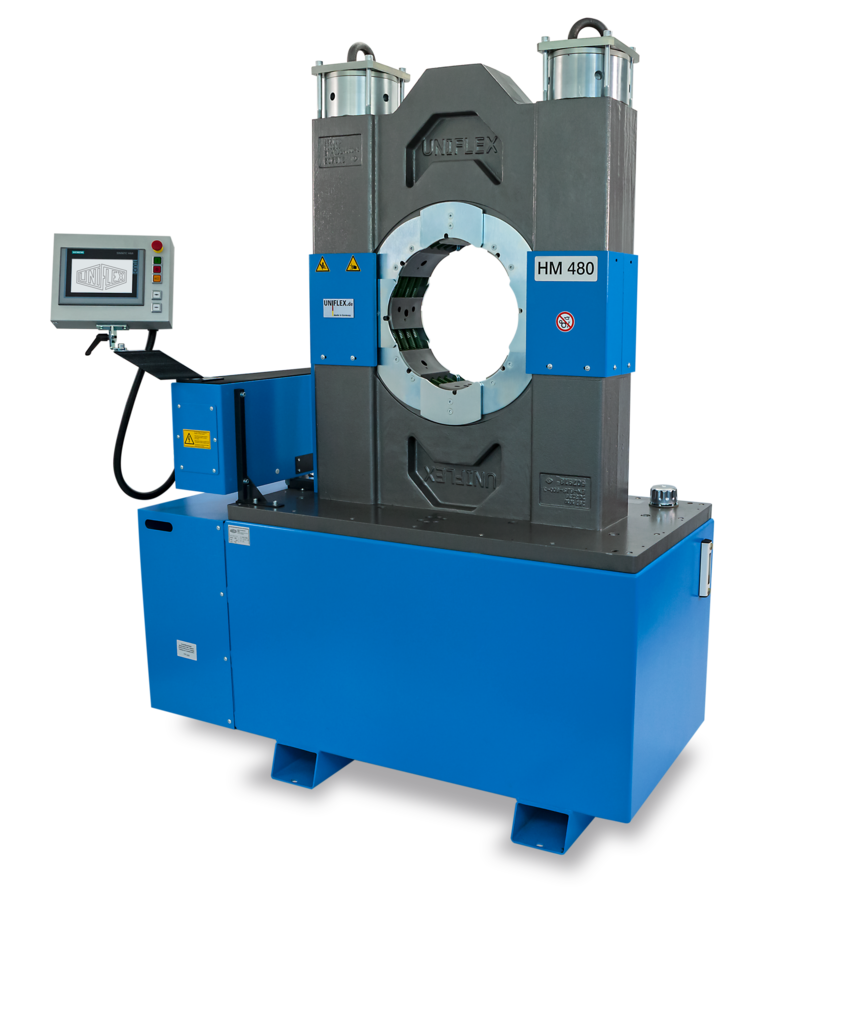

The HM 480 with Control C.2 has an opening stroke of more than 150mm. Thanks to an opening diameter without dies of 380mm, the HM 480 can be used to crimp industrial hoses up to 8" with ANSI flanges and pipe fittings up to 12" without removing the dies. With a press force of 4500kN, UNIFLEX slide bearing technology, a fixed 6-o'clock die and a bottom die length of 150mm, the HM 480 offers all the features UNIFLEX crimpers are renowned for: high productivity, quality, ergonomics and a long service life.
More about HM 480 with Control C.2: https://www.uniflex.de/produkte/produktionspressen/hm-480/
