Signed, sealed, delivered

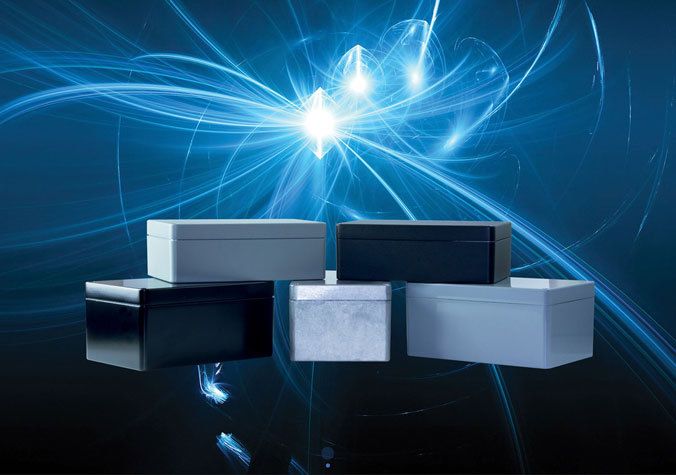

Suitable for harsh conditions, the enclosures allow OEMs to use electrical equipment in various offshore and marine environments and other wet environments such as food and medical.

Rated to a standard ingress protection of IP66 and a maximum of IP68, the range of heavy duty enclosures protect vital electronic equipment from a host of ingress types. They range from ingress by dust and high pressure jets of water to protection from complete, continuous immersion in water. Both IP66 and IP68 variants are certified to BS EN 60529:1992; IP66 for protection from jets of water and dust ingress and IP68 being fully submersible to 10m for 20 hours.

John Mitchell, CP Automation’s business development manager, comments: "This waterproof enclosure has all the benefits you would expect from a heavy duty component, whilst prioritising creative design and ease of installation. One of the key design features is protection against EMI and RFI.

"An excellent level of screening is achieved against electromagnetic interference (EMI) and radio-frequency interference (RFI) by enclosing the silicone seal well inside the box and ensuring a good contact between the lid and the base. In addition to this, integrated mounting holes allow the mounting bolts to be concealed within the enclosure. This results in the entire inside of the box remaining free for assembly."

The range of IP66 and IP68 heavy duty enclosures is available in plain, powder coated and nylon coated versions. All the enclosures are robust and lightweight, and have a smooth finish with no sharp edges.


All the enclosures include lid and seal as well as captive and earth screws in addition to PCB card guides and stand offs. The unit offers base plate and DIN rail mounting points and has a silicone seal rating of -60 to 200°C.
