Safe and hygienic handling

JDN has created a nickel-plated hoist to ensure the highest level of cleanliness. Designed specifically for clean operating environments, this hygienically robust hoist can be configured in the company's standard Profi TI series for 0.5 to 1t, or big bag handling unit and low headroom trolley hoist for 1t. All of these feature outer surfaces plated in 25 µm thick nickel.

Where Profi hoists are required to run on overhead rails, both manually operated and motorised trolleys can be provided with nickel-plating features on the gearbox/motor and body.

For applications, such as commercial kitchens, the JDN Profi hoists offer a number of useful standard features including, high corrosion and humidity resistance, ease-of-cleaning and suitability for lube-free operation. JDN also has a number of stainless steel options including the chain, load hook and sleeve and top hook.

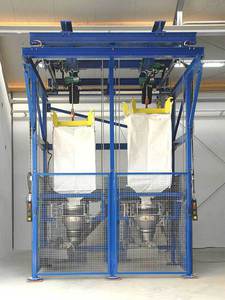

JDN’s nickel-plated big bag handling air hoist is part of a range of products designed for applications that need to process powdered, granulated or other free-flowing materials which need regular, high volume top-ups in order to maintain the high levels of production. These hoists are suitable for handling food products such as salt, sugar, flour and starch, as well as chemical and pharmaceutical products. All these air-operated JDN products provide explosion protection features for safe operation when being used in potentially explosive work environments.

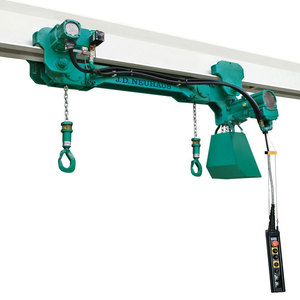

Big bag handling air hoists are available at carrying capacities of 1100 and 2200kg (with 6 bar air pressure). They can be supplied in two configurations of single or twin lift/load hooks. The single hook unit is designed for operation with a standard cruciform lifting beam. The large distance between the hook and the chain box advantageously eliminates potential collisions between the load and the chain box.

Twin load hook models operate with more complex multi-point crossbeam designs, or for standard lifting beams featuring twin suspension points. In addition, they can be operated with synchronised lifting operation.
