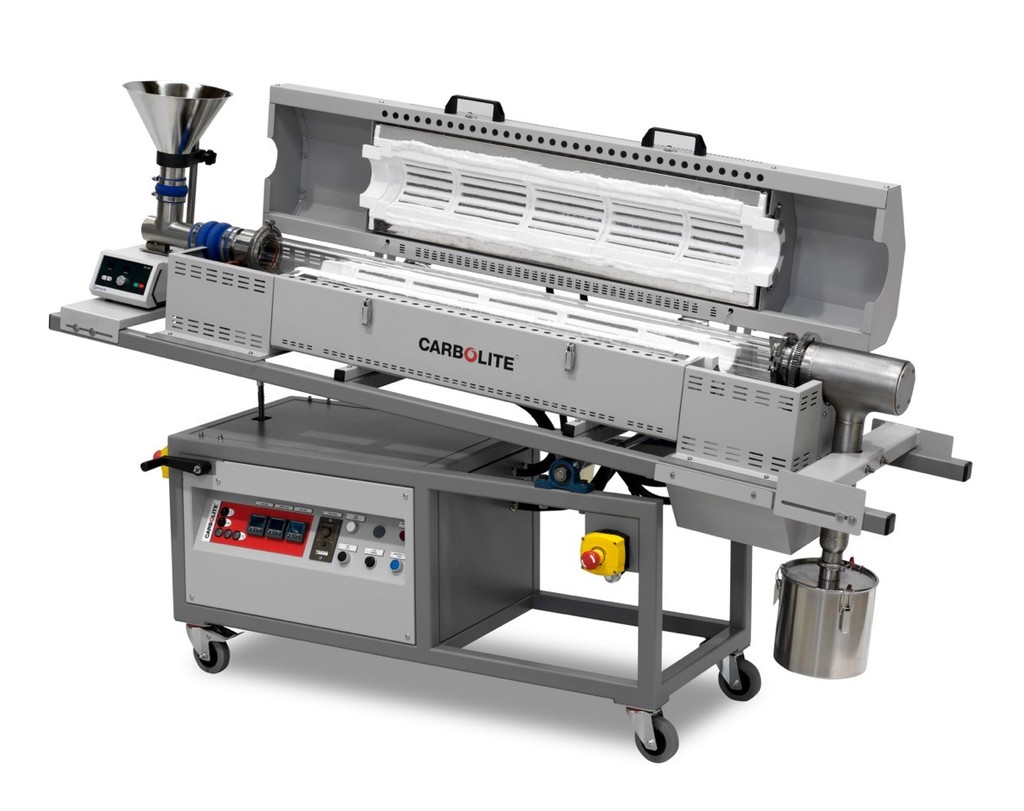

Rotating tube furnace with easy-to-remove work-tube

The RHZS furnace is based on the company’s HZS 12/900 model, but provides more flexible sample processing through the adjustment of tilt and rotation speed of the work-tube, allowing the heating of each sample to be precisely controlled. Samples are automatically fed into the tube from a Retsch vibratory feeder and collected at the exit end in a 5-litre container fitted to the furnace frame.

The split design of the furnace allows the work-tube to be removed easily and replaced whenever required. Work-tubes to 110mm external diameter can be used.  A safety switch automatically cuts off the power supply to the elements and rotation system when the furnace is opened.

Total heated length is 900mm, divided into three zones, each with its own controller and thermocouple. Wire elements in high-quality vacuum-formed insulation ensure fast heat-up, uniformity and short cooling times.

Packages for processing samples in inert gas are available as optional equipment.
